Cliffys™ COMPLETE Tales of the Arabian Nights protectors
in stainless
Complete but with Carbon Fiber rings!
Lets take a look at the protectors installed...
BAZAAR SCOOP
Common wear at the bazaar scoop
Remove scoop assembly
Insert protector, reinstall scoop, DONE!

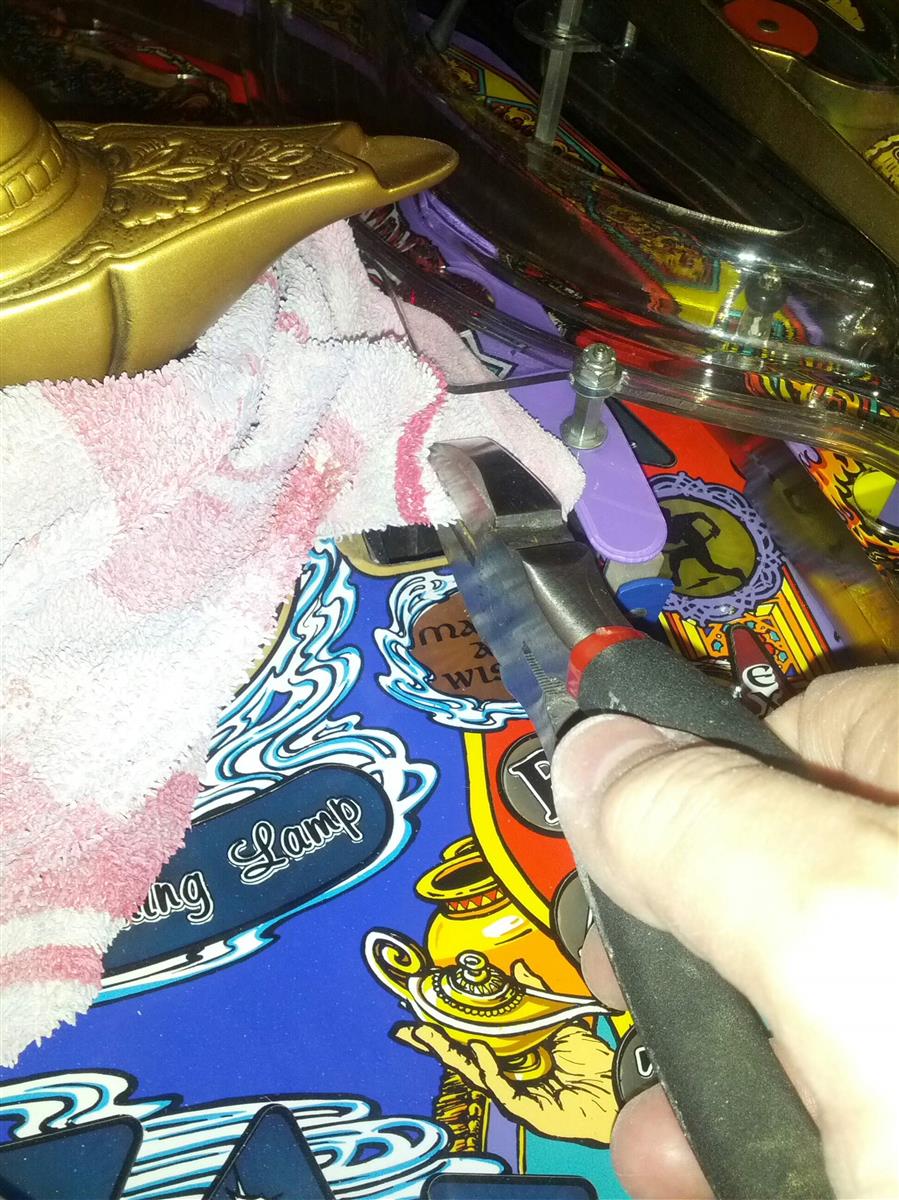

On some games the deflector scoop must be bent slightly upwards for clearance.
Use a rag and pliers as James shows us here.
My newest version (2020) of the protector is bevel matched on front and side
which should eliminate ball jamming now (EXCEPT with repro scoop mechanisms!)
ORB RING

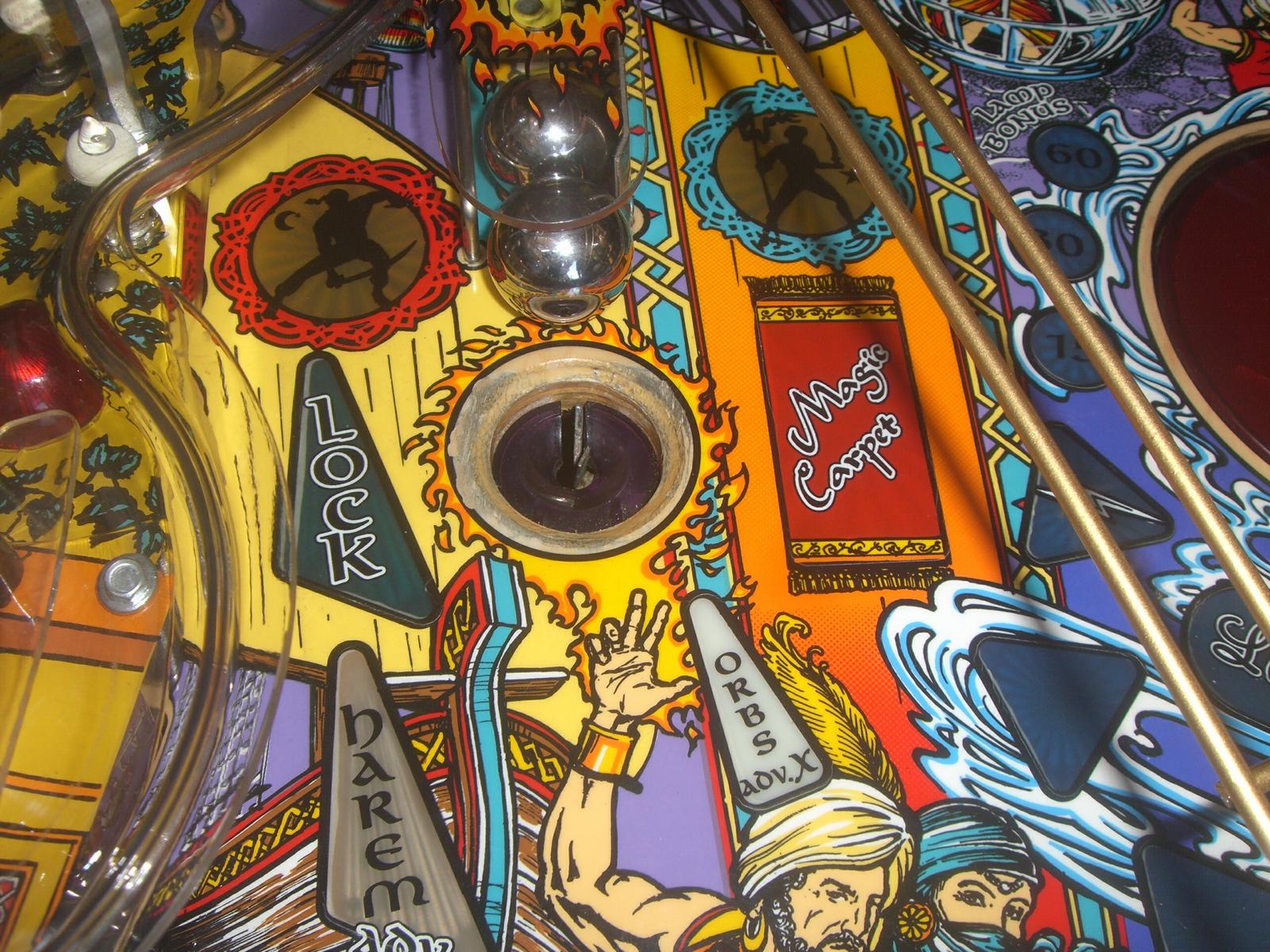

Orb wear. Area around saucer cleaned of wax with alcohol

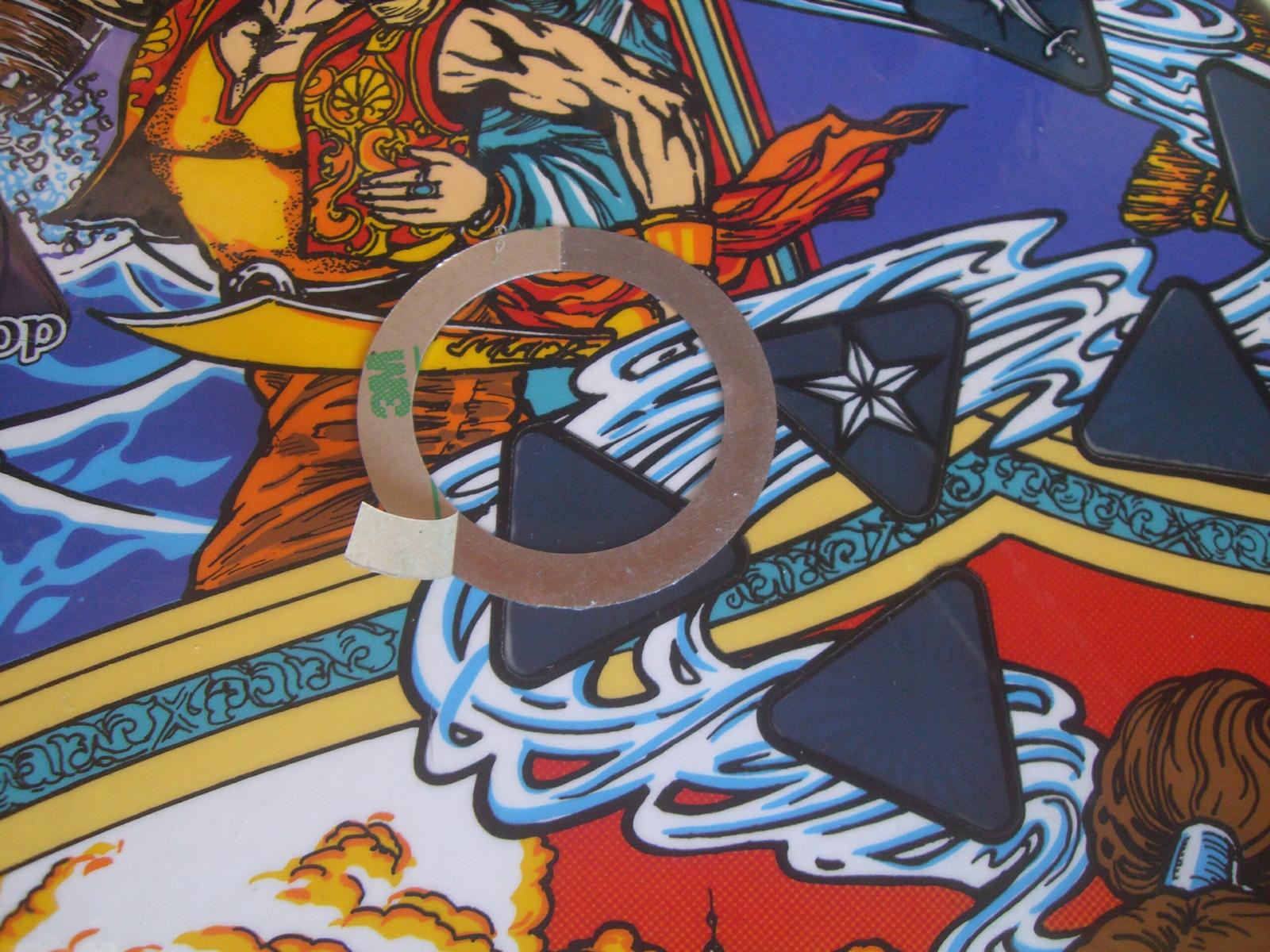

Peel tape backing part way and fold back a grab tab. Pic
shows other half of tape already removed
Carefully center protector over saucer and pull out
remaining backing. Press into place

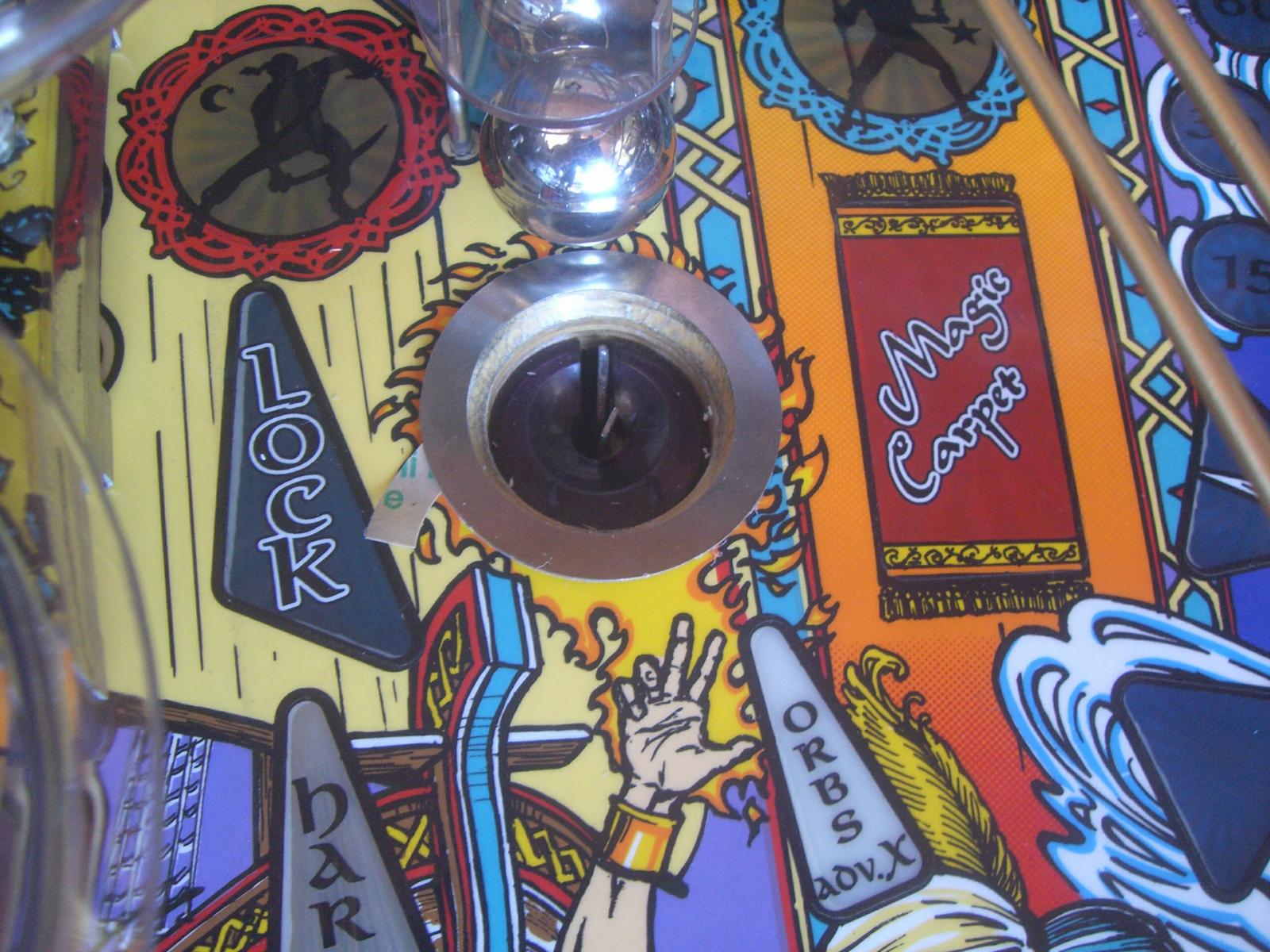

DONE! What a beauty. Plays without interference too!

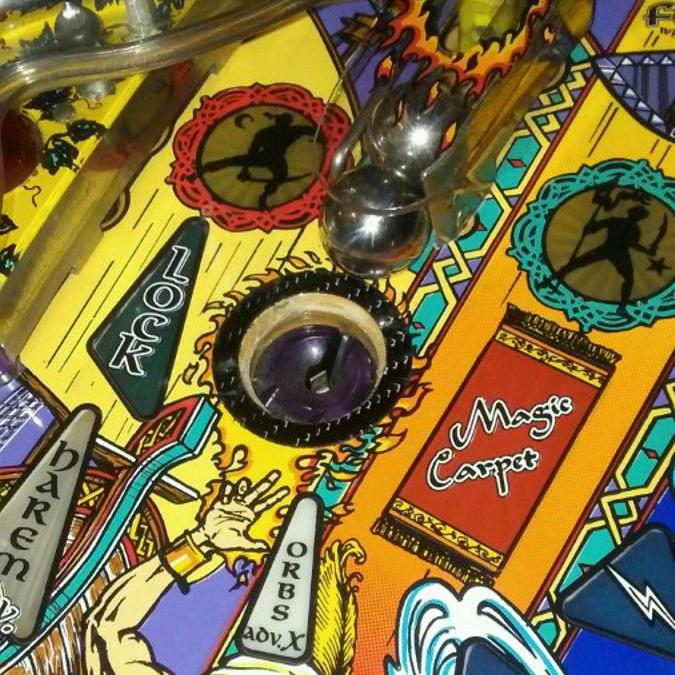

And in carbon fiber- nice!
GENIE & TIGER MAGNETS

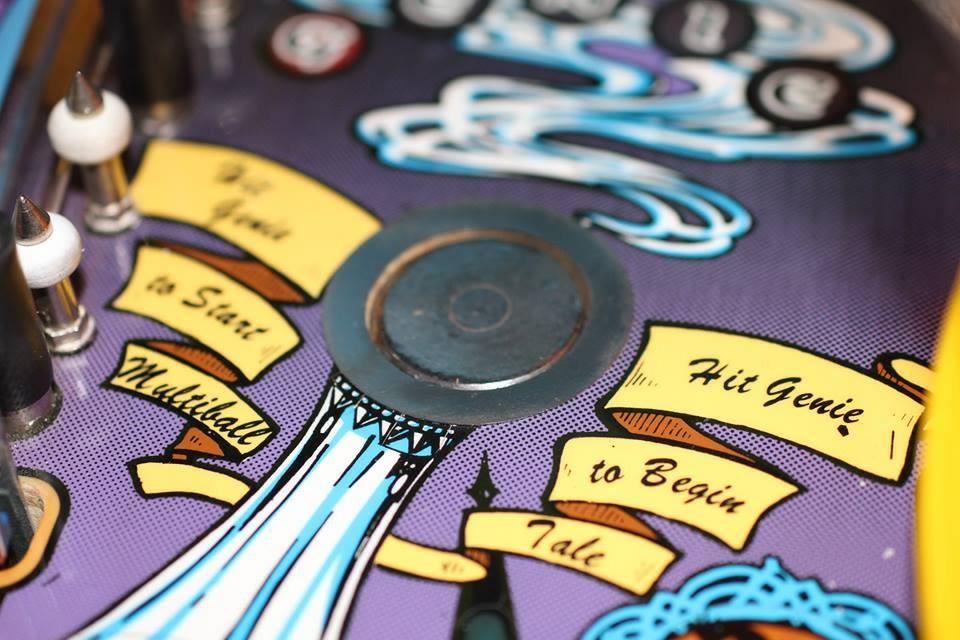

Typical wear at the Genie magnet.

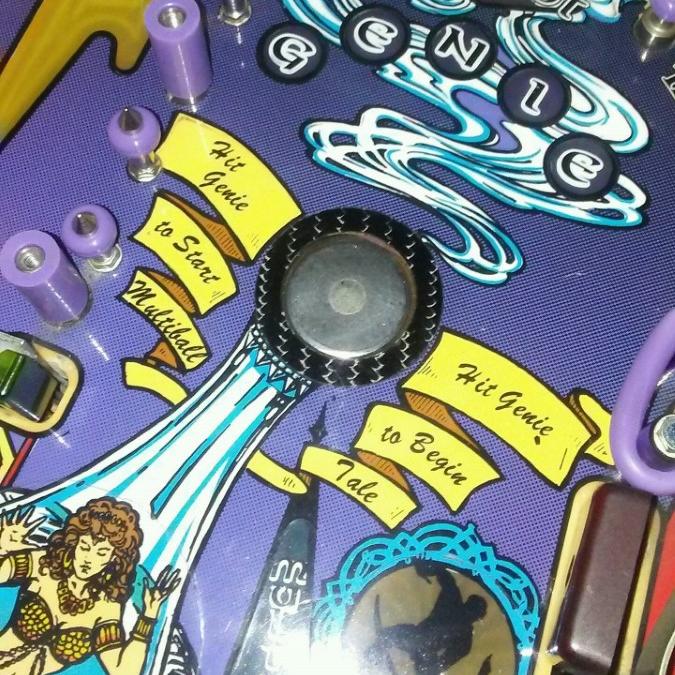

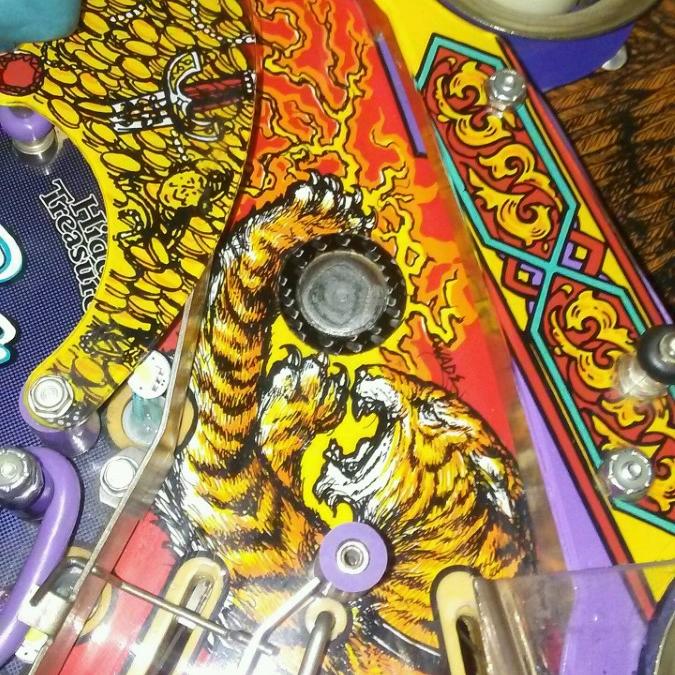

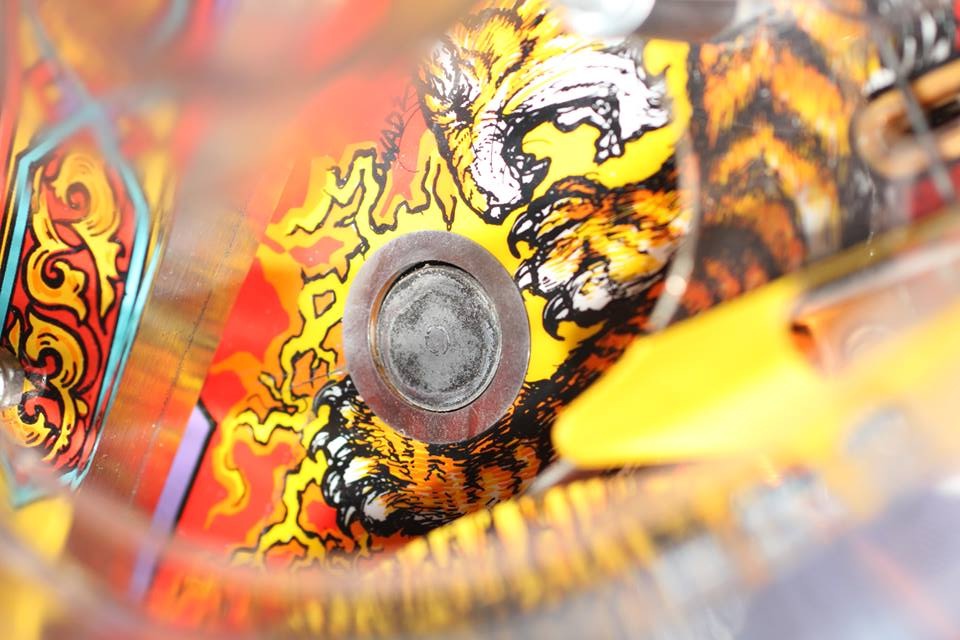

Orb and Tiger protected!
and in carbon fiber!
SHOOTER EJECTS

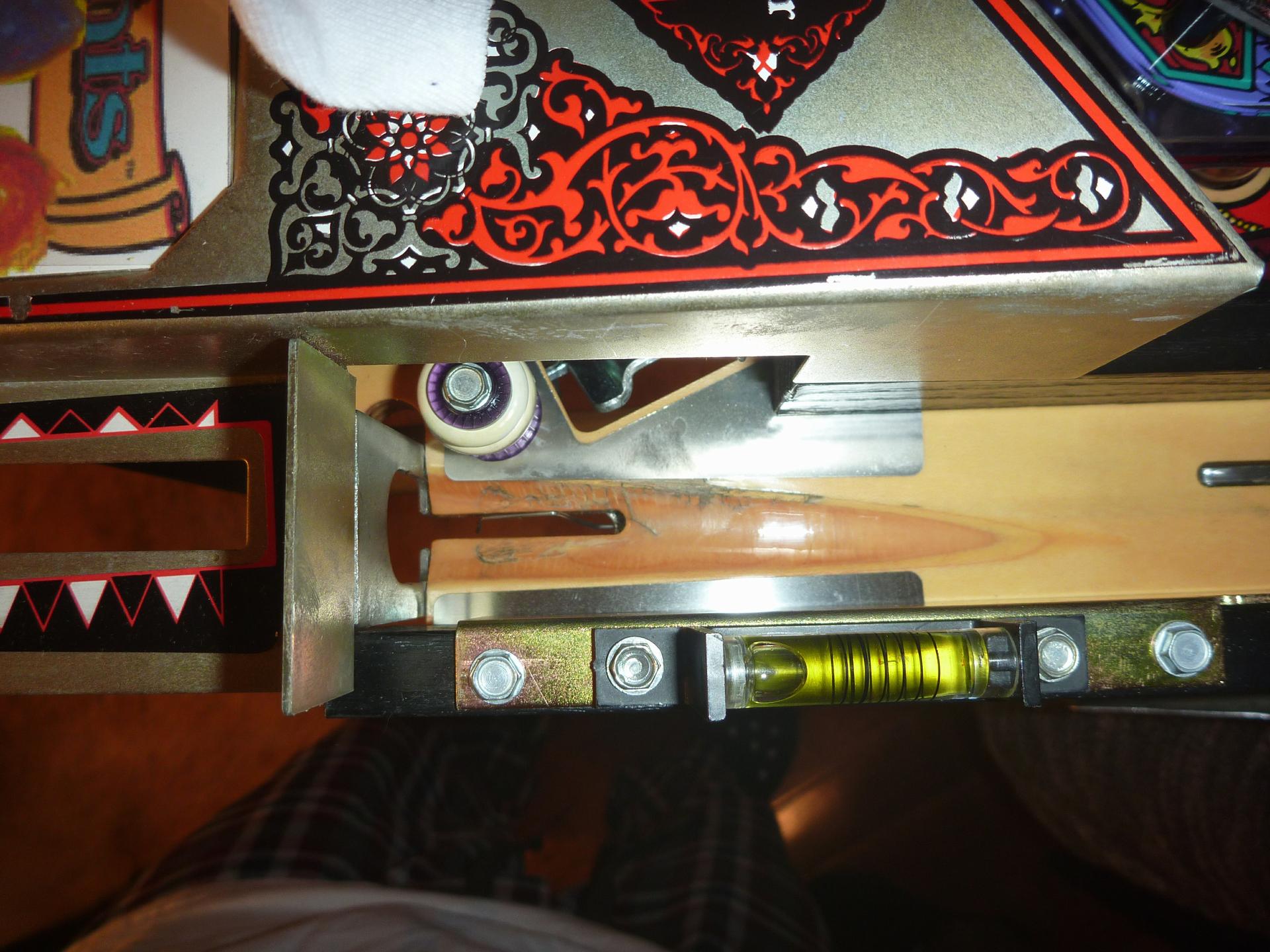

Scott Sikora installed the 2pc shooter ejects eliminating the nasty blackened divots typically found here
OUTHOLE (drain)
Drain protector shown installed. This game is notorious for chipping at the edge
of the drain
MAGNET LIFT RAMP - Flaming Gong
Here's a piece that was left out on early versions of
TOTAN but later added as a service bulletin part. OEM part seems to be NLA (no
longer available) but, thanks to Stuart Wright, Cliffy was able to make a replacement.

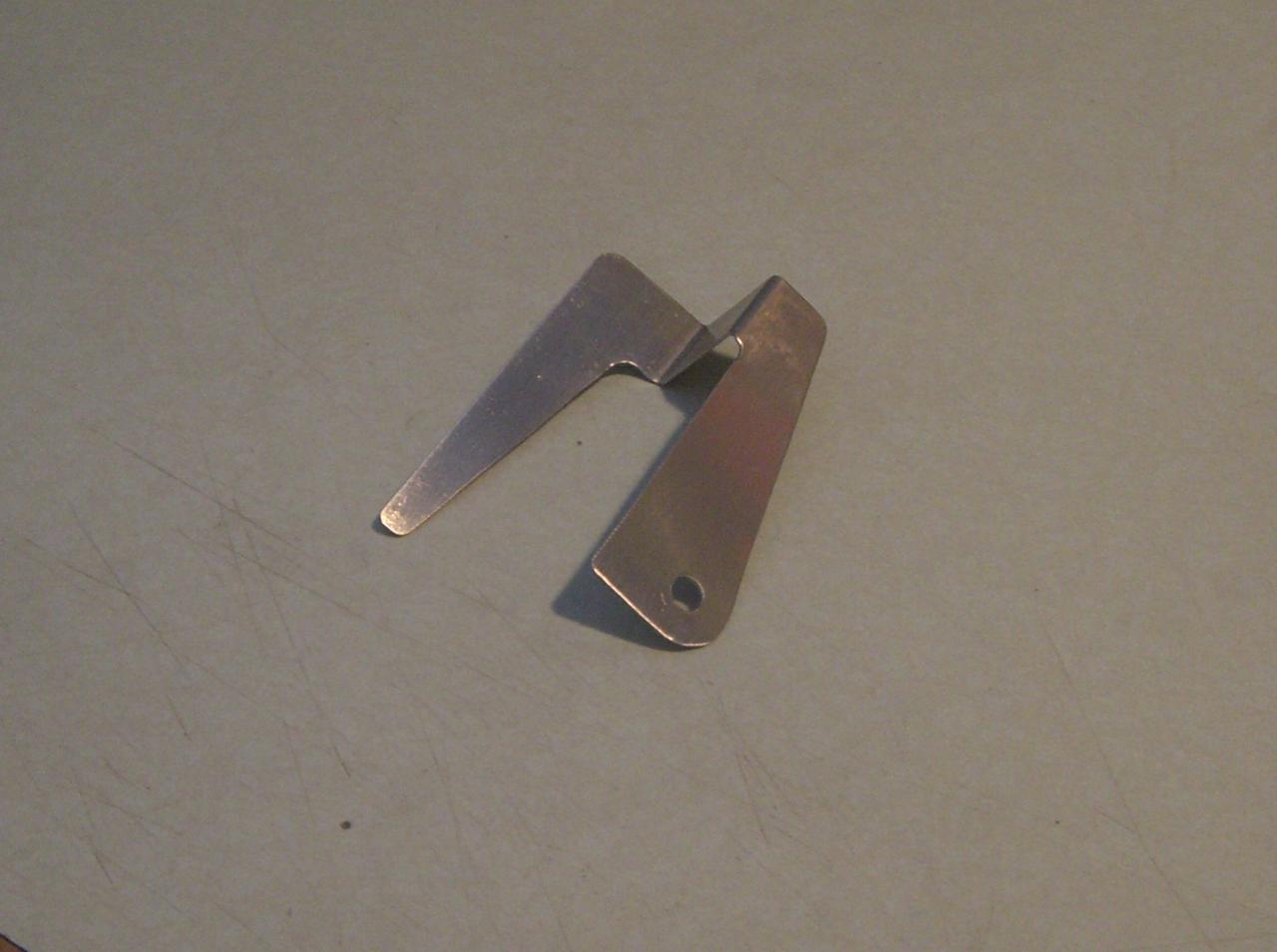

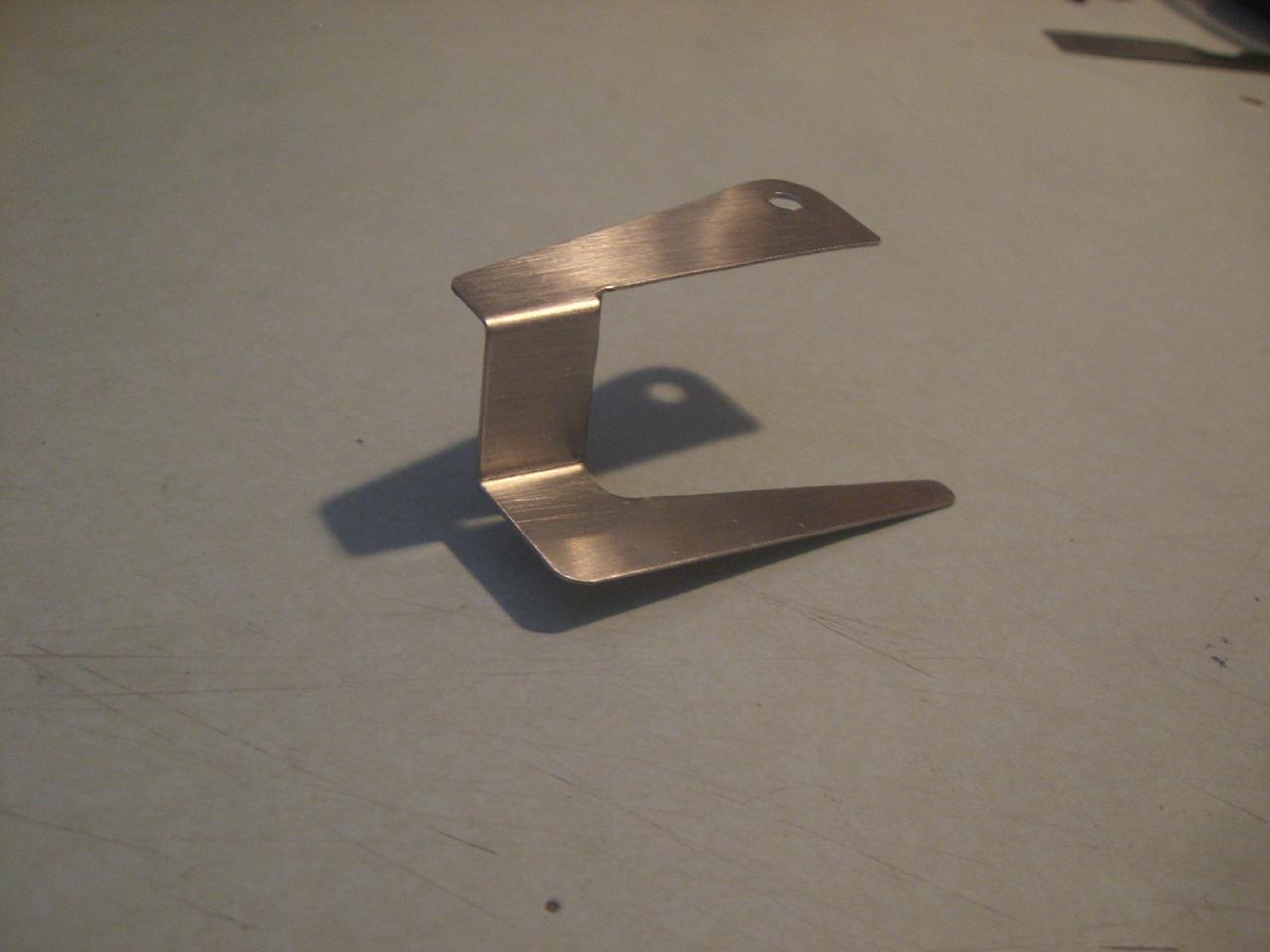

Magnet lift ramp in shiny 24 gauge stainless
Better looking than OEM too! It attaches to the plastic
ramp using and existing mount point and guides the ball up to the catch magnet
(Flaming Gong)
 Here's the ramp with no magnet lift ramp. The magnet has a hard time grabbing the ball as it zings past. |

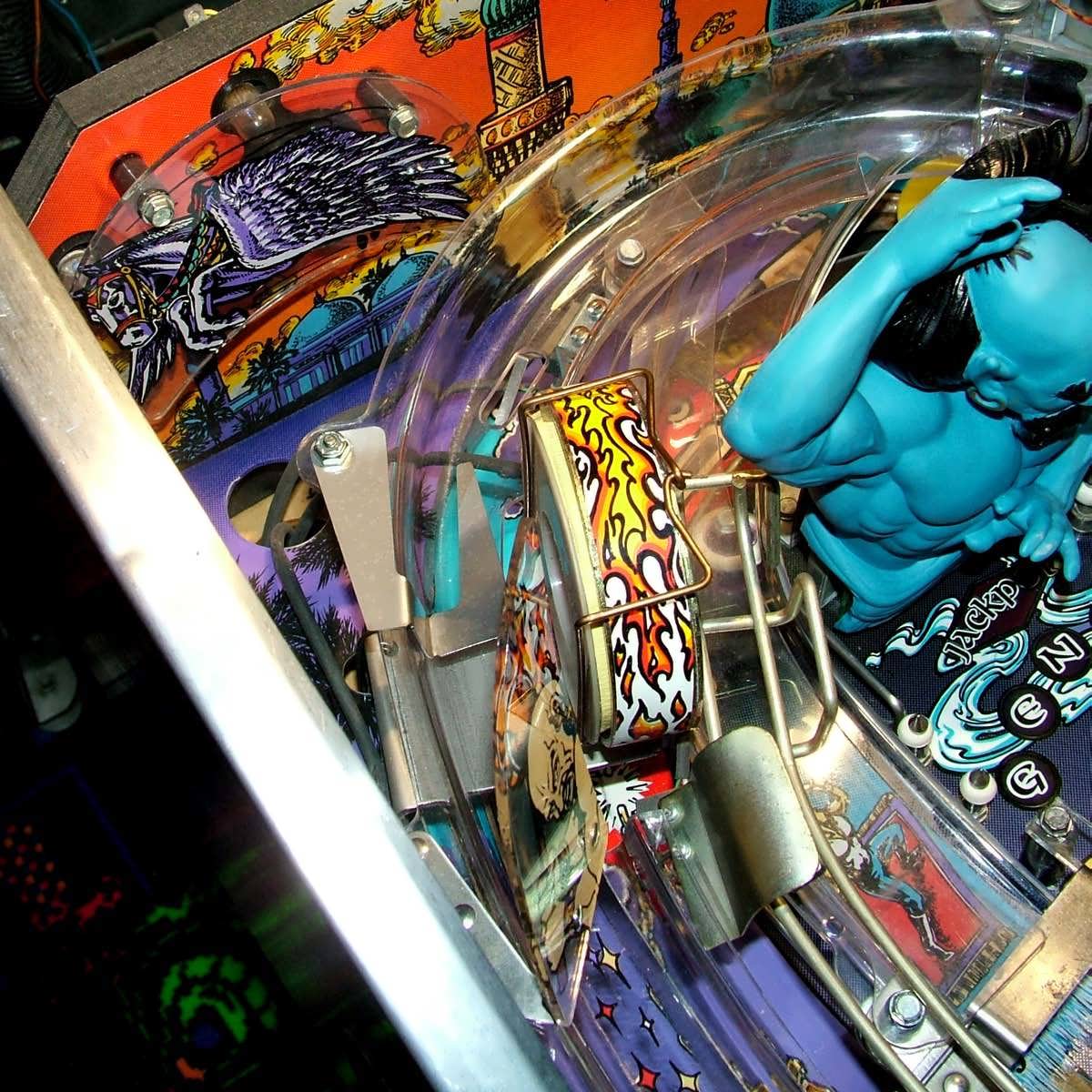

The magnet lift ramp is attached to the existing post and
you can see how it will assist the magnet in grabbing the ball.
|
RAMP END PATCH

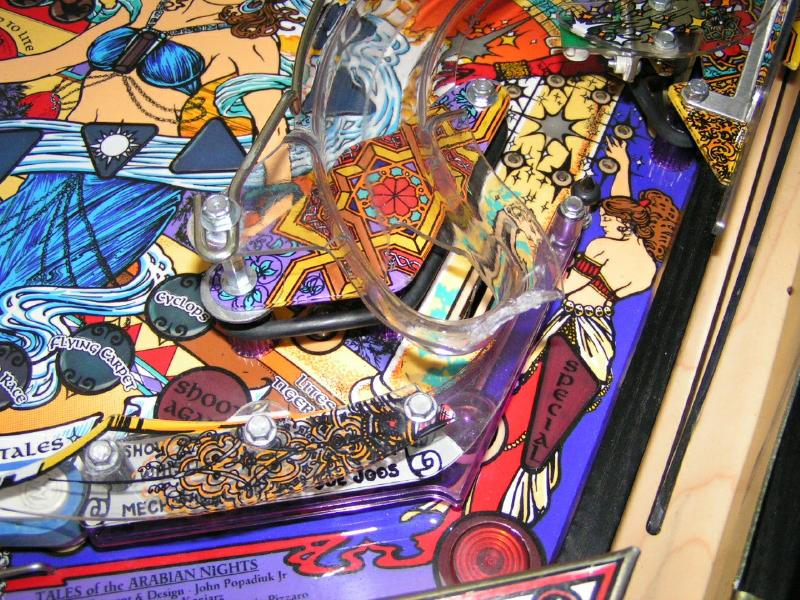

Typically broken right ramp end. The ball stop gets
hit hard and snaps the end of the ramp right off

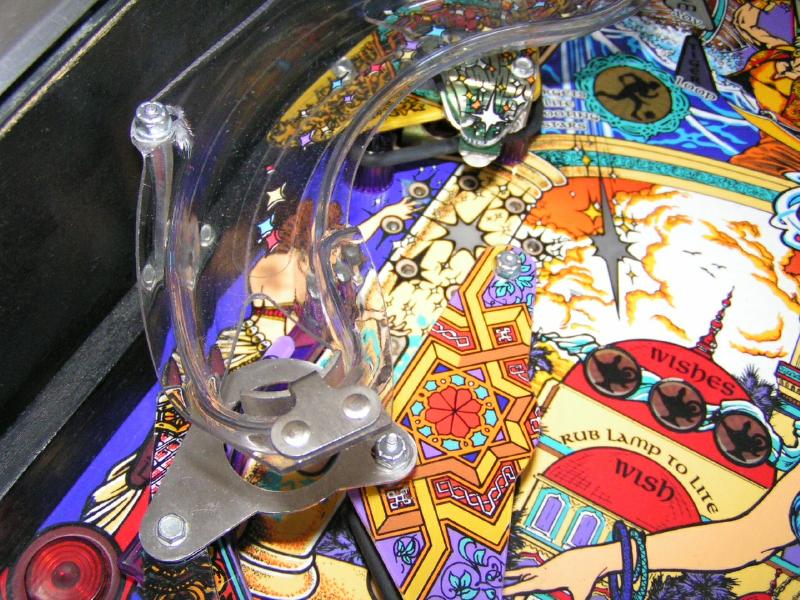

This is a normal ball stop on the left side of a ToTAN

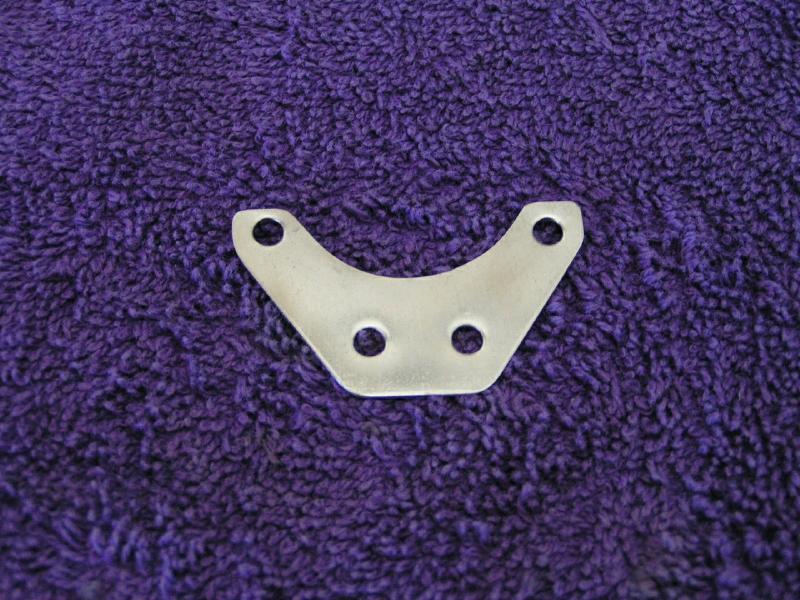

Cliffys™ repair patcher made in 22 gauge stainless
Original ball stop attached to Cliffys™ patcher using the salvaged rivets
Bottom side showing rivets peened over
Cliffys™ patch kit includes #5-40 button head screws and nuts for those who
can't use rivets. They look like rivets too!
Lined up & ready to drill for screws. Use a #25 bit for the included #6-32
screws and locknuts

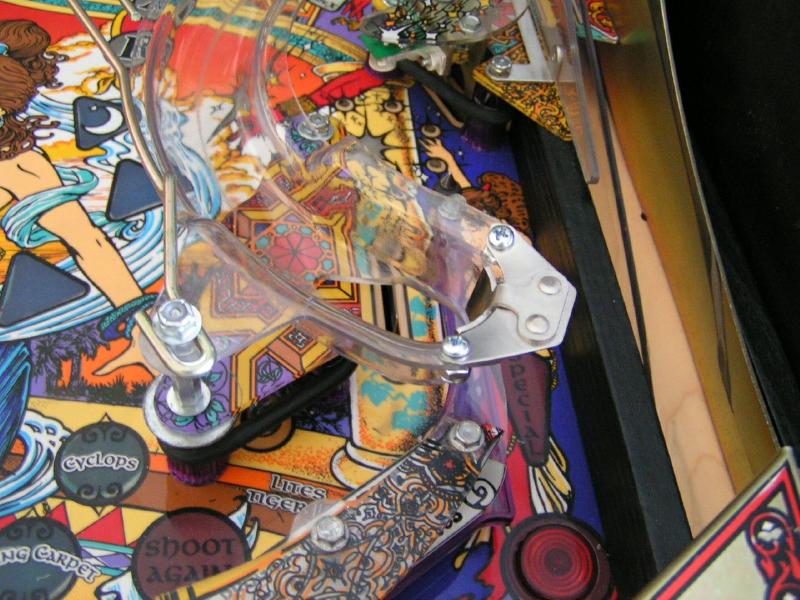

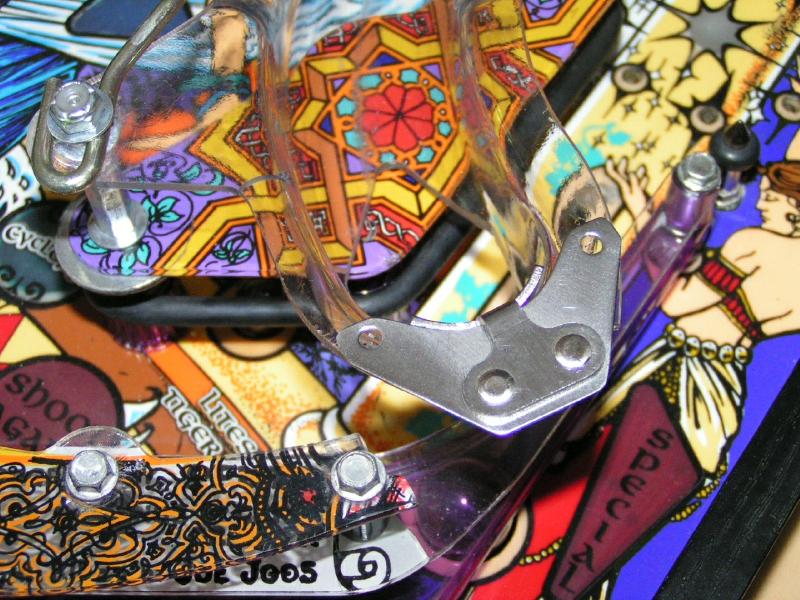

And finally here it is attached with two 6-32x3/8" screws
and nuts. Looks nice and much stronger!

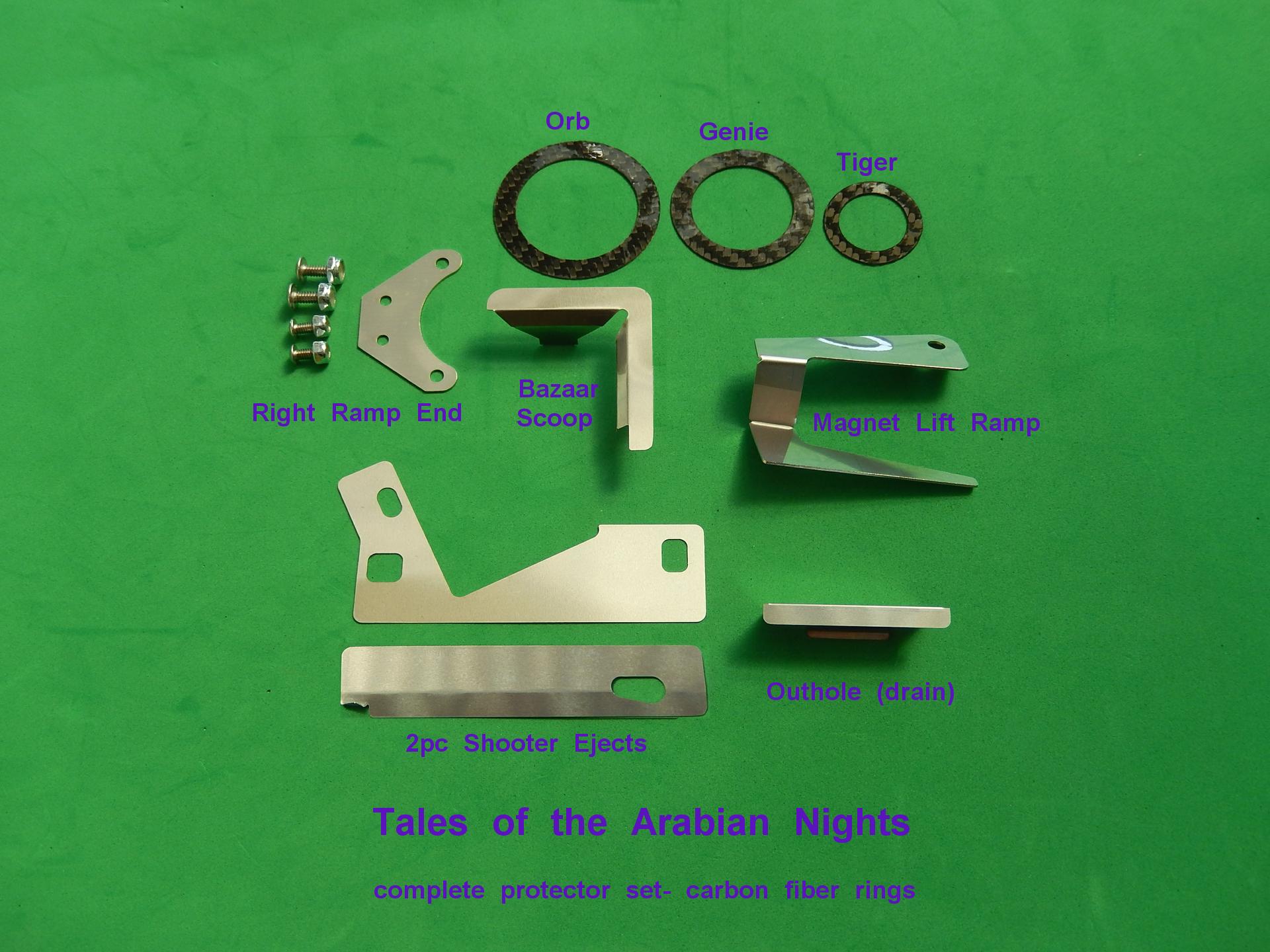

COMPLETE KIT with carbon fiber rings $98- Bazaar scoop, Genie + Tiger mags, Orb, Magnet lift, Right ramp end patch, outhole drain and 2pc Shooter Ejects

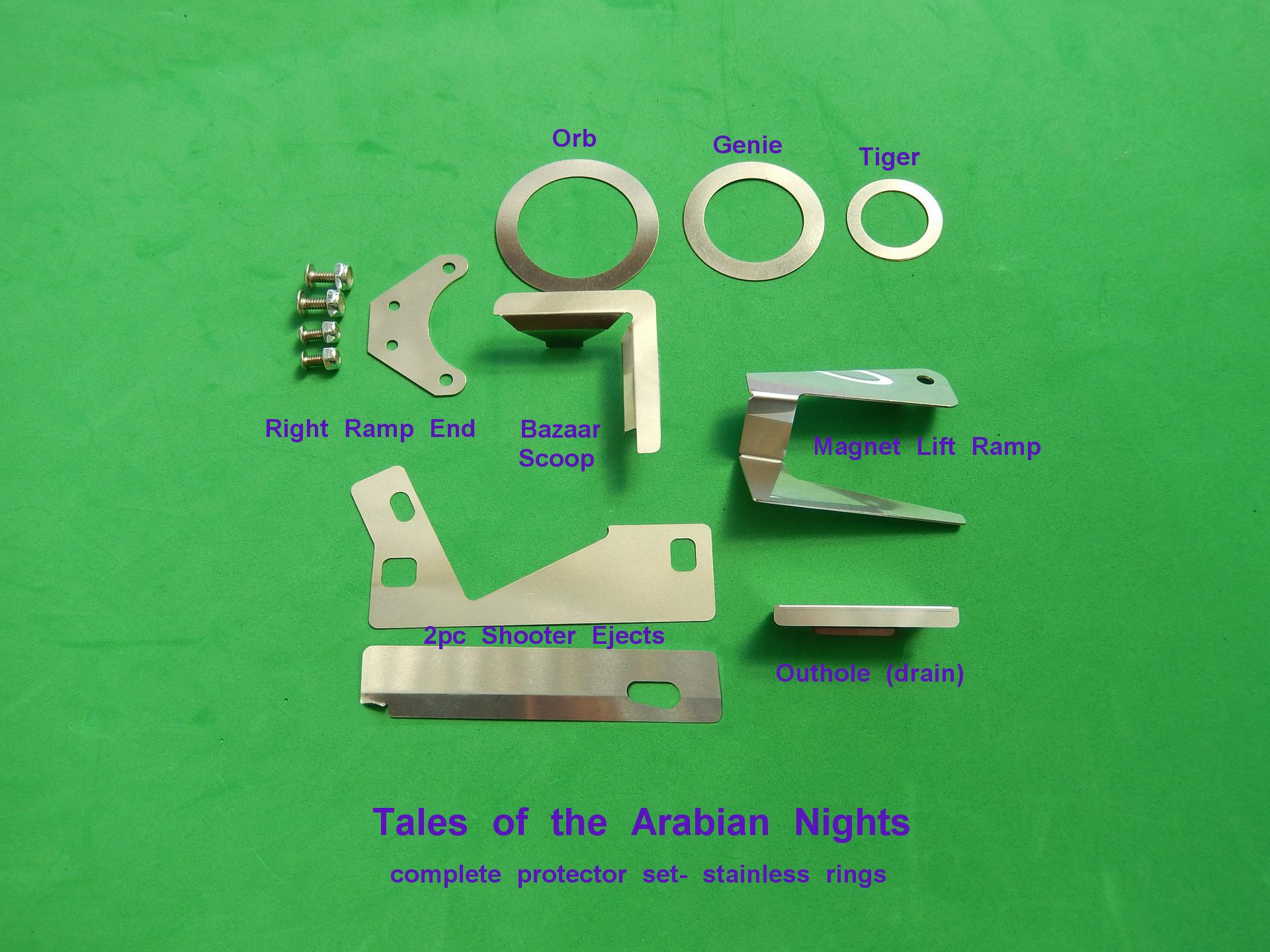

COMPLETE KIT with stainless rings $94- Bazaar scoop, Genie + Tiger mags, Orb, Magnet lift, Right ramp end patch, outhole drain and 2pc Shooter Ejects
Only $22 for the Bazaar, $10 for the right ramp end patch, $17 for the magnet lift
ramp.
Click
HERE to email me and get yours! (will open your system default email
program)
Shipping cost not included in prices. Ships USPS First Class unless
Priority Mail requested
California residents please add sales tax
