Enhanced No-Hop™ and Direct Replacement Flipper Return Frames for Williams/Bally, Data East Pinball Games

Over the years the flipper return frames, also known as flipper ball guides or even inlane guides, have become mushroomed and peened over where the frame meets the flipper bat. This wear causes the ball to hop over the flipper or get trapped between the base of the flipper and the frame.  For the past several years we've been relegated to scavenging frames from parted games in hopes they will be better than what we have. Failing that we ended up grinding and filing the frames which may make them look better but simply will not fix the ball hop issue. Put that file down MacGyver! Thanks to the help of dedicated pinball fans- Jim Palson, Steve Turner, Andy Miner, Scott Saluga and Kristof Vandermeeren, I've been able to remake a few of the more common frames. Big thanks to Bob Langelius too for helping with drawings for the Funhouse frames, Matt Behrens for WW and JM Ratkos for CFTBL!

To start off I've made direct replacements for Williams part number A-8108-R, A-8108-L and B-8239-1. These fit many, many games from 1980 through the 90's. Be sure to check the pictures against your game or your manual and/or parts manual if you have them.   I've discovered that with Williams games in particular, they've used different part numbers even if the frame itself hasnt been revised. Click the pics to enlarge and make the captions readable.

What do I mean by "enhanced"?
I simply mean that I've brought the ball roll edge of the frame up to the level of the flipper rubber. For some unknown reason Williams wasn't very precise with both the width of the frames nor the placement. This is crazy obvious on games like Firepower which uses a B-8239 on the left side and an A-8108 on the right. This is a VERY common frame set used on MANY games, including many Data East games. The obvious difference is the width across the frame. The B-8239 is 1" wide. The A-8108 is .93". A typical modern flipper bat with rubber is about .85" at the widest point- the "hip". So I needed to make the frames the same width and align the mounting holes such that the ball roll edge of the frame ends up on the same plane as the flipper rubber. In a few cases I have to LOWER the ball roll line. On others I also close the gap between the frame and flipper bat. Thats what I mean by "enhanced".

Is there still room for error? Unfortunately, yes. I cannot control where the manufacturers located the mounting holes on the playfield, for example. However my enhancement does resolve the vast majority of hop problems. In extreme cases where the frames were screwed down way off the user may need to plug and redrill the mount screw holes for best alignment. I've only seen this twice so far though.

Bally was also guilty of this lackadaisical sizing and placement of flipper frames so I've been slowly gathering them up and enhancing them as well. Many early Bally's used butyrate plastic! Not only did they break but they continuously shrink and warp with heat from lamps and time. I'm making my stainless frames for these that go under the plastic so you keep the appearance but gain a MUCH better playing game. See pics below

    First lets look at the common wear areas on a flipper return frame. What should be a straight, smooth transition to the flipper has become a dip, the reverse of a speed bump if you will. This dip cause a ball to launch up and over the flipper instead of rolling smoothly down.

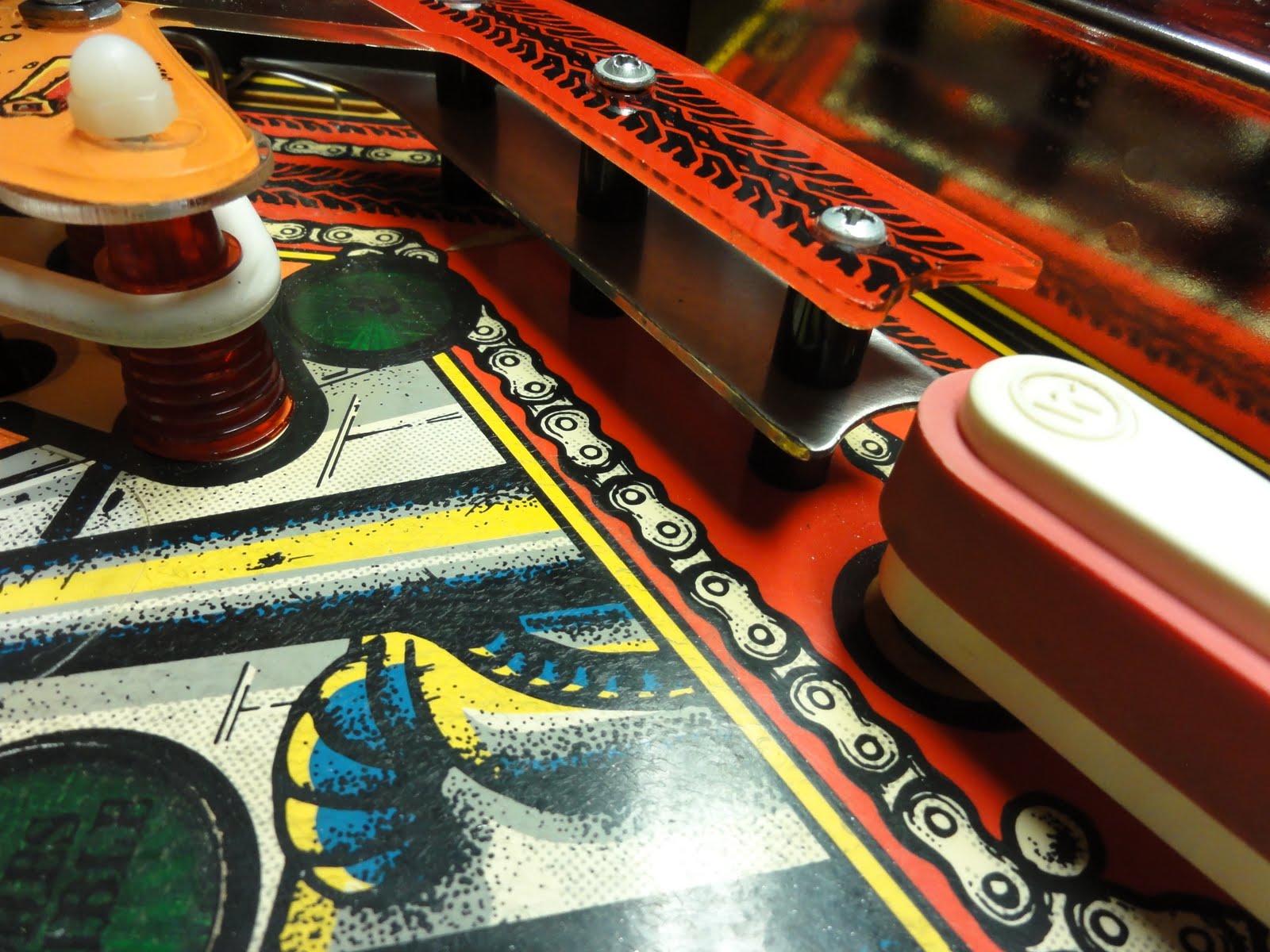

    Wear at the junction of frame and flipper bat on a Road Kings. This causes a ball trap and can be quite annoying shoving and flipping to loosen the ball.

BEFORE AND AFTER VIDEOS

Grant Quinn made these slow motion videos on his Grand Lizard showing typical ball hop on factory frames and then no hop with my enhanced frames installed. These videos dramatically show what I've tried to explain in the text above. Grand Lizard uses A-8108 left and right

    Grand Lizard Before                   Grand Lizard After


Twilight Zone with Cliffy's™ No-Hop™ flipper guides, left and right- SMOOOOOTH!


THE REPLACEMENTS

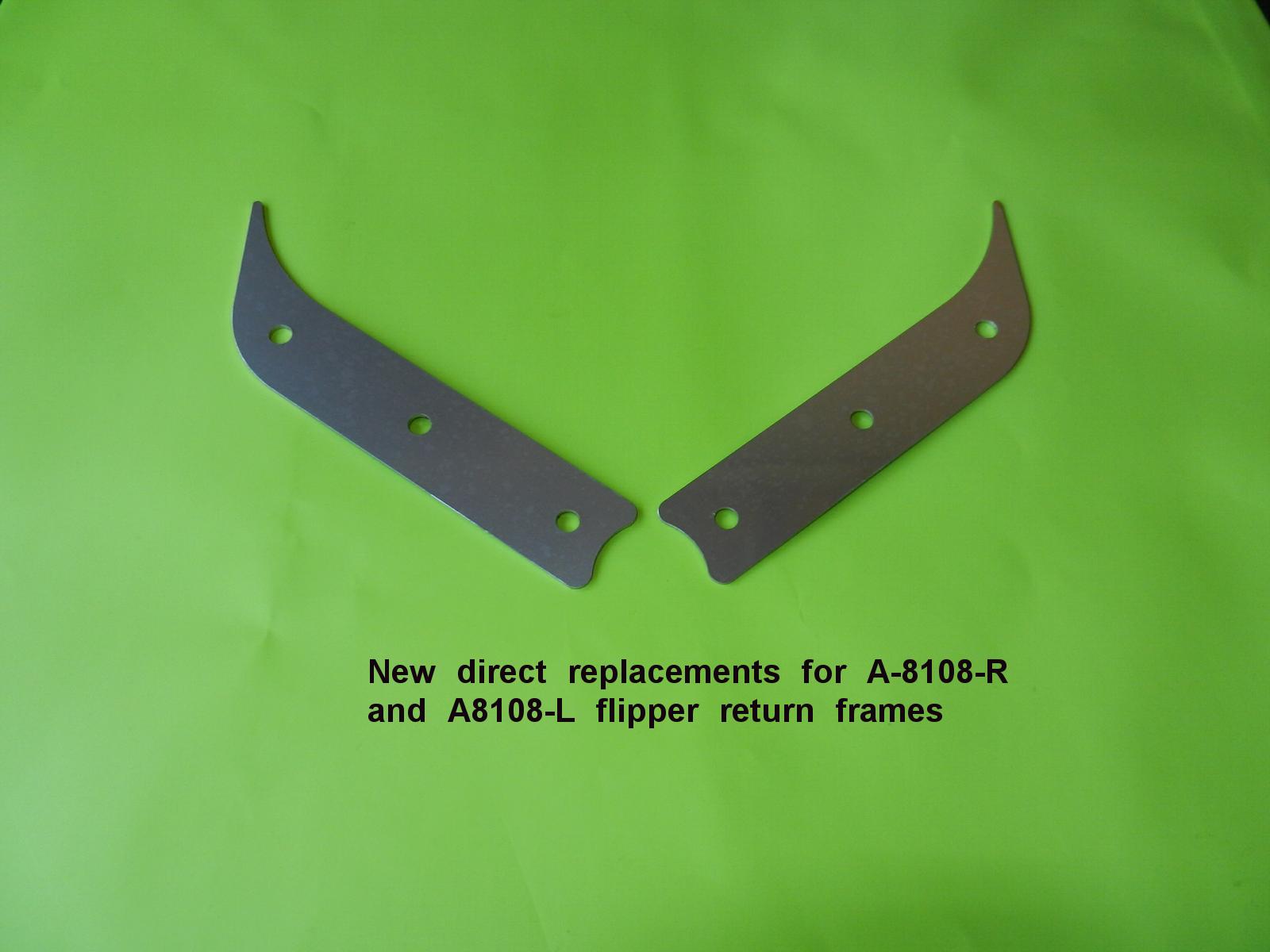

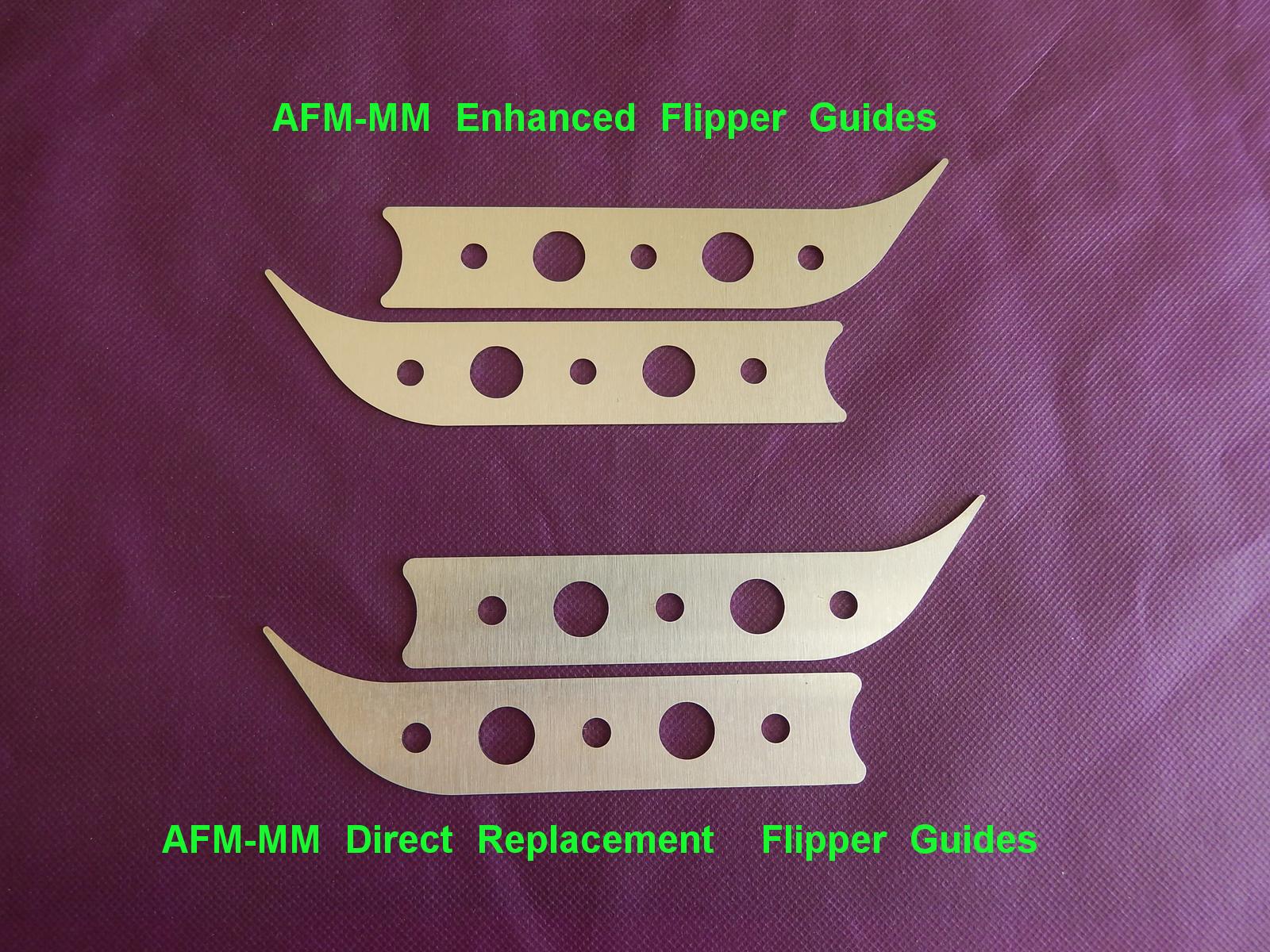

        On the left are the direct replacements for the purist (phasing out!). On the right is my enhanced version

    The pic on the right shows the difference between the enhanced and original more clearly.

Below are pics of Steve's Firepower showing the fit of the new frames.
        Wonderful! This is the direct replacement set.

THE ENHANCED VERSION

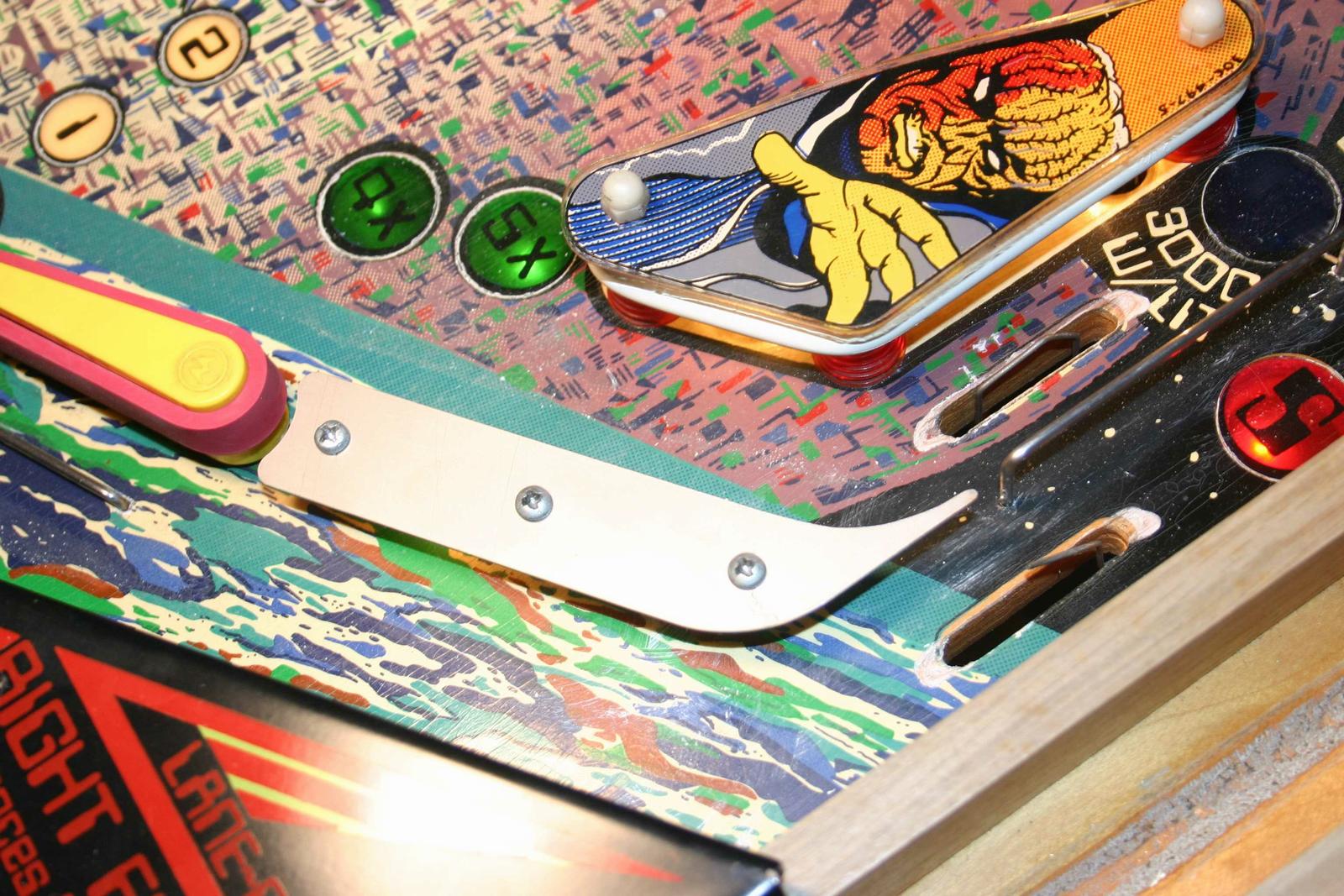

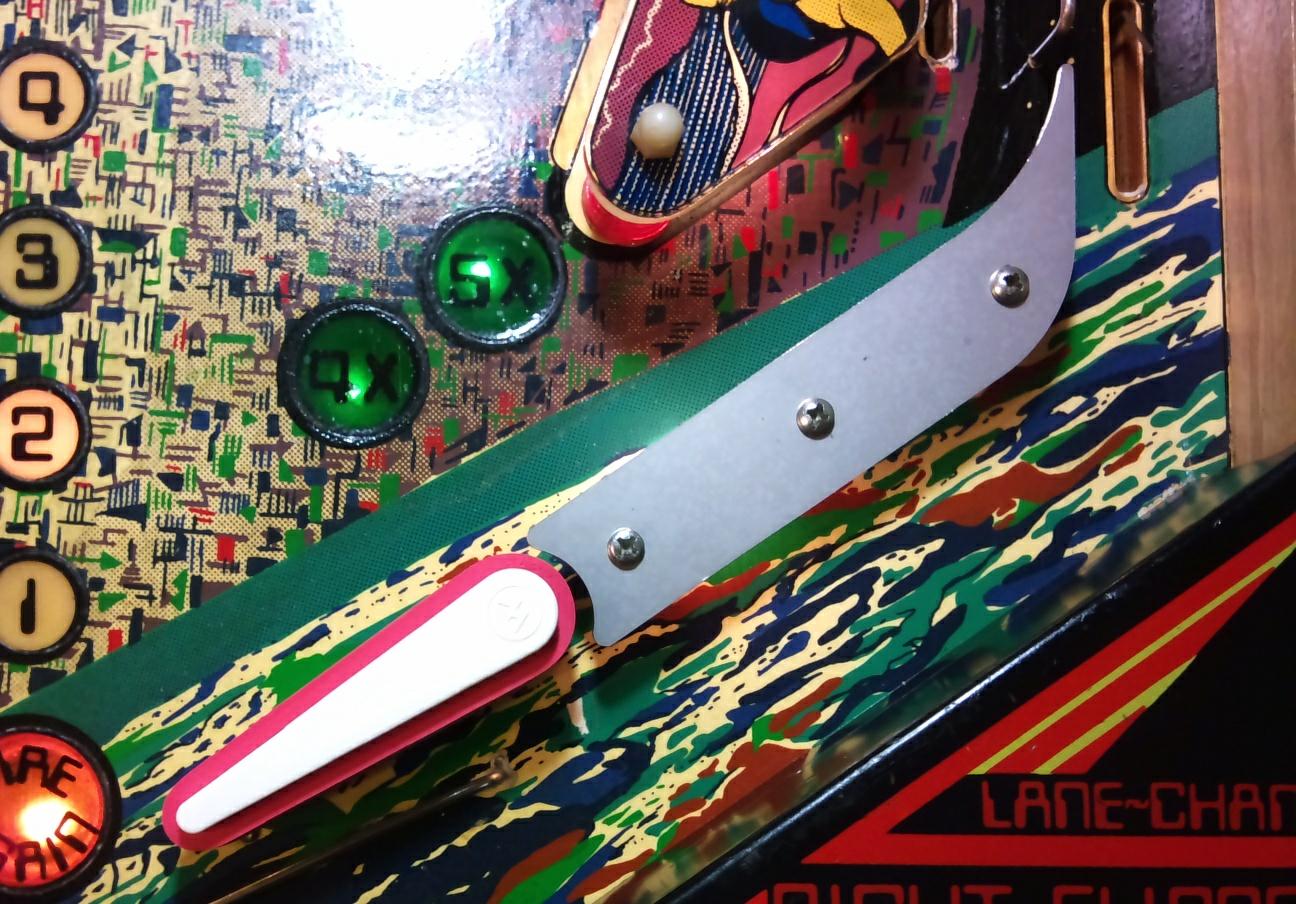

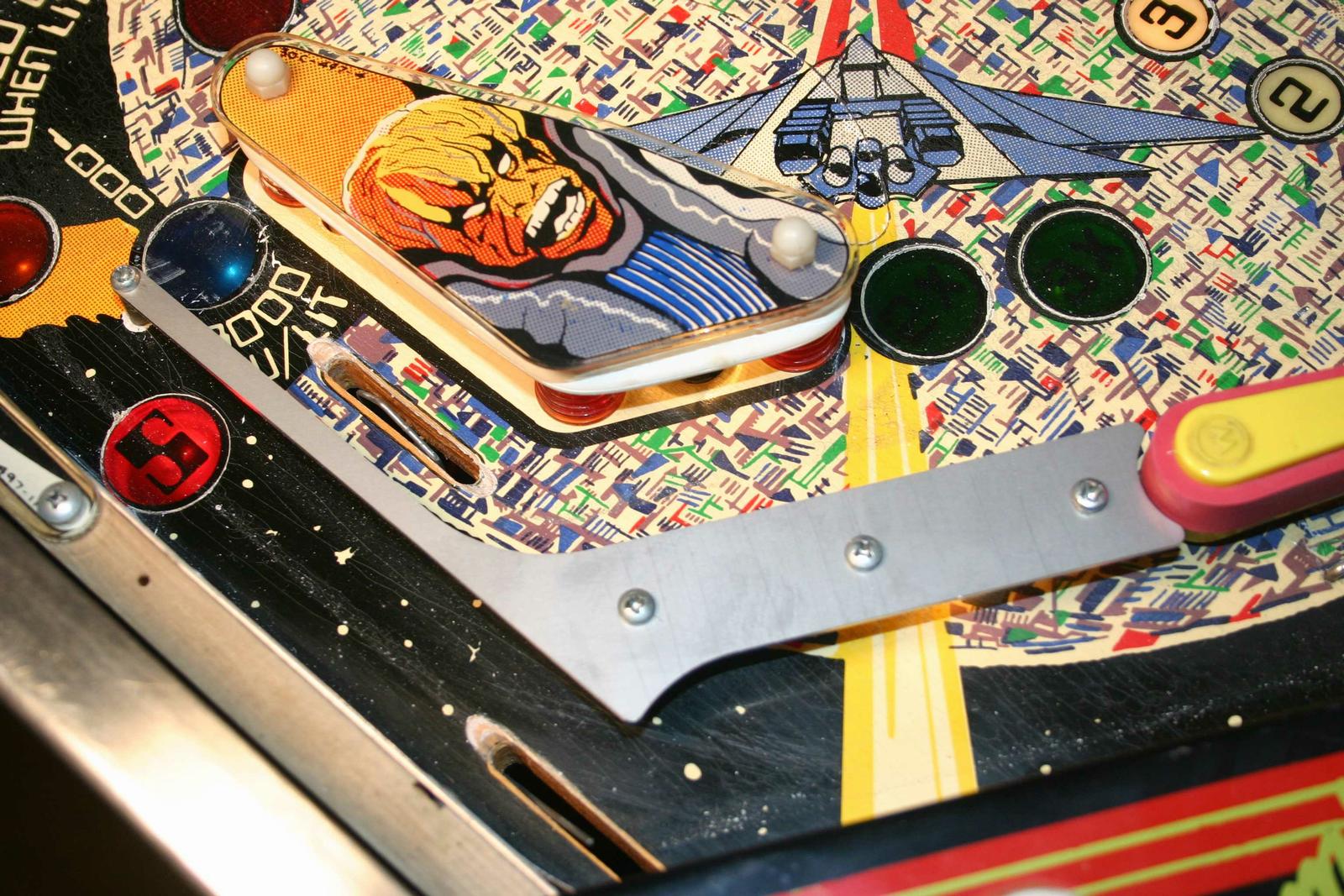

    Here's my enhanced A-8108-R on Steve's Firepower. Note the precise, smooth line from guide to flipper. MUCH better than stock - ZERO ball hop!

    David's Cyclone

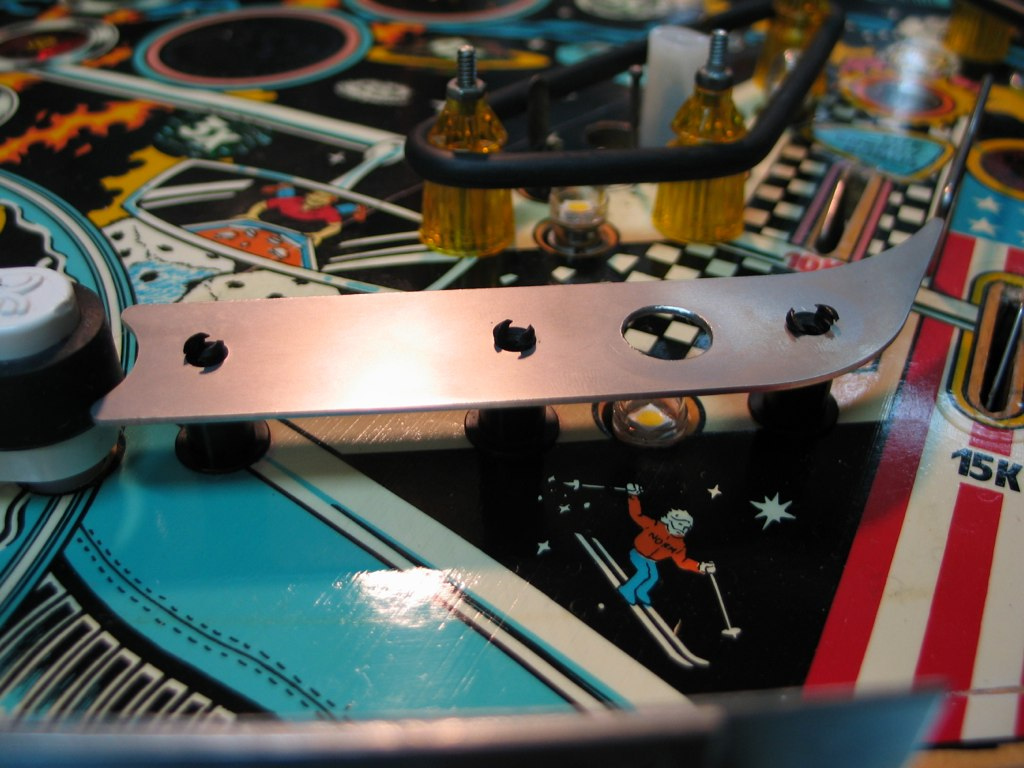

    Steve Faith's Data East Time Machine. Yep! Data East!

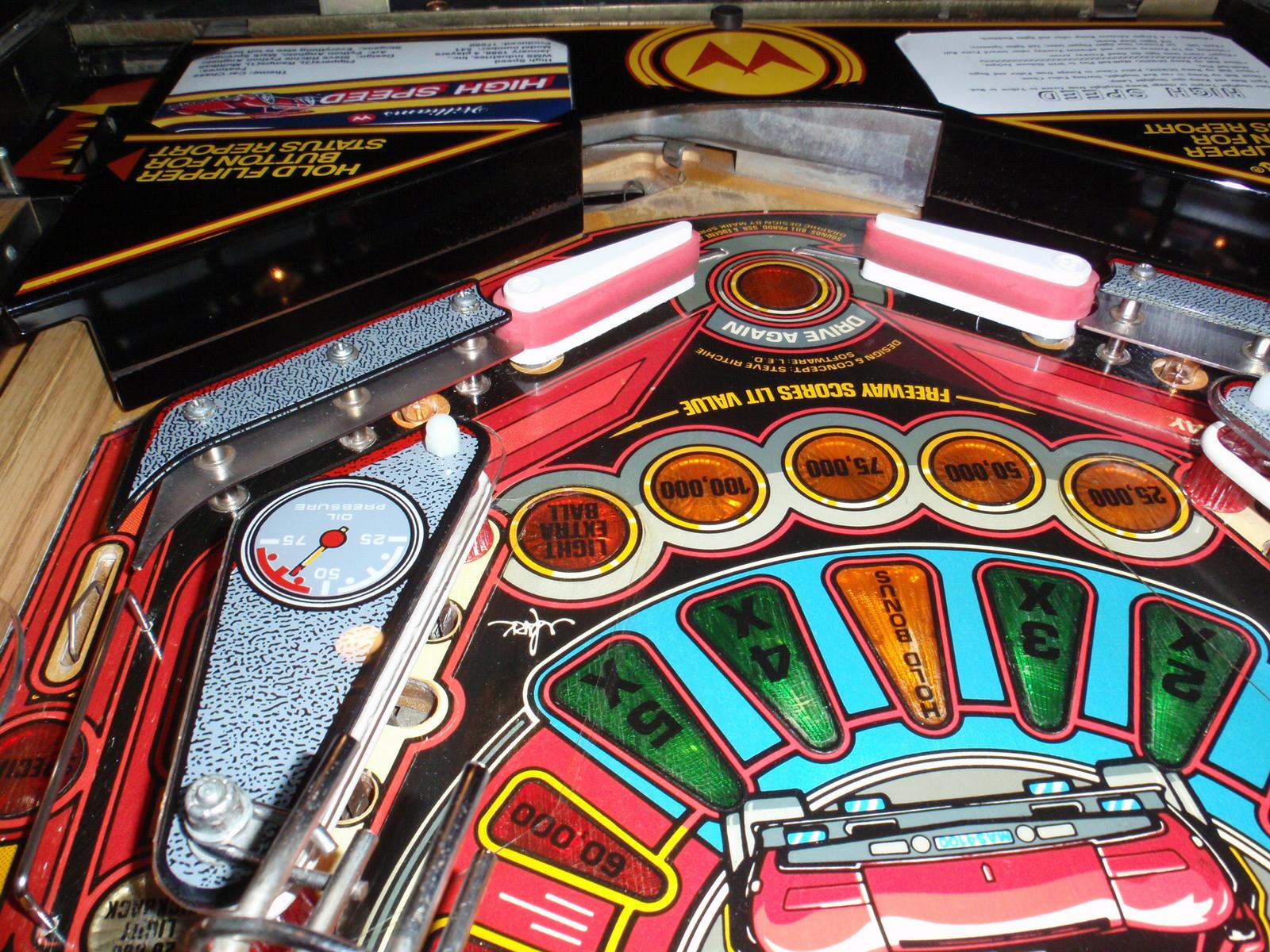

        Andy's High Speed

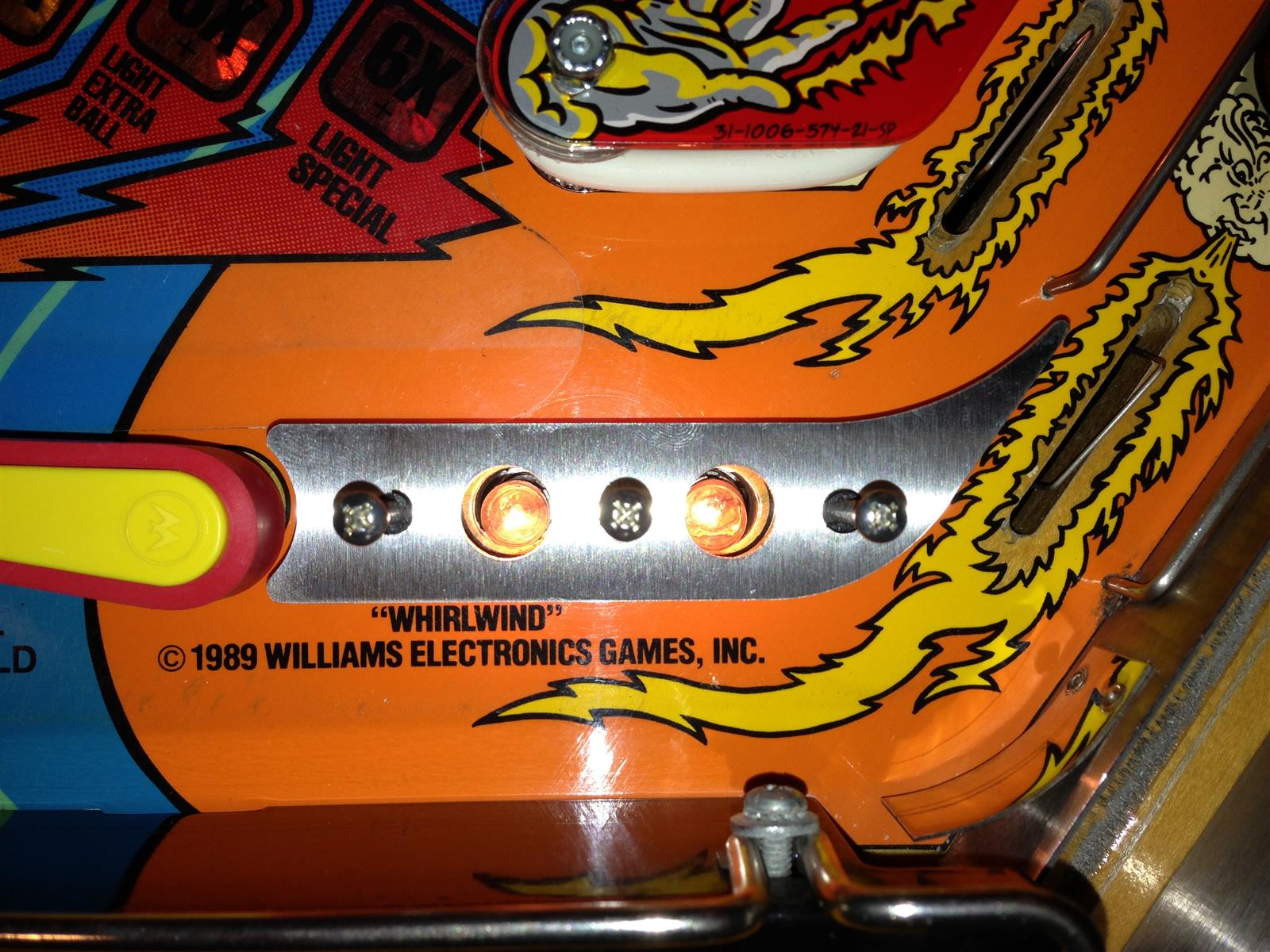

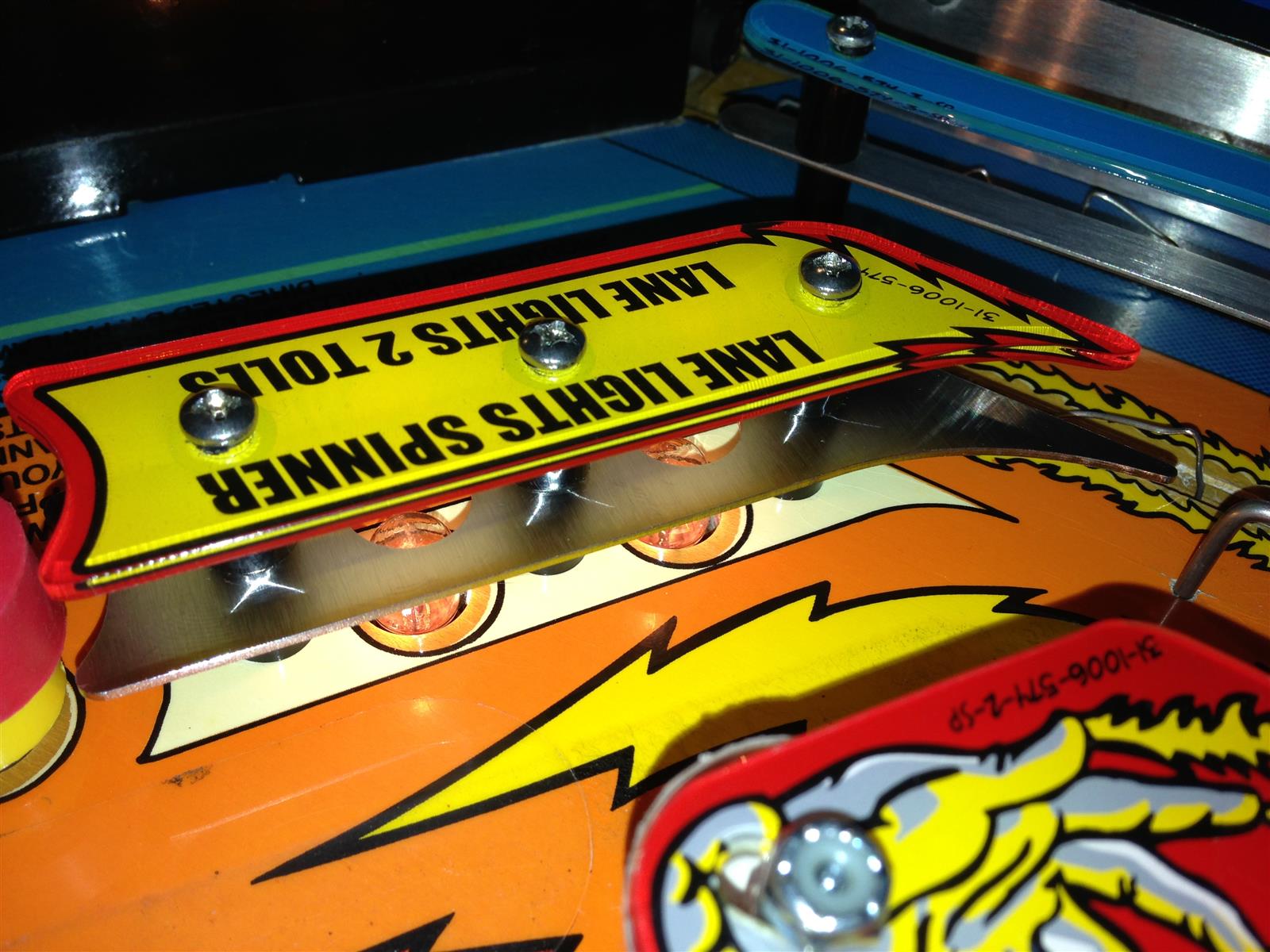

            Matt's Whirlwind!

    Phoenix adapted to use my A-8151 frames by Scott Harvey - WOW!

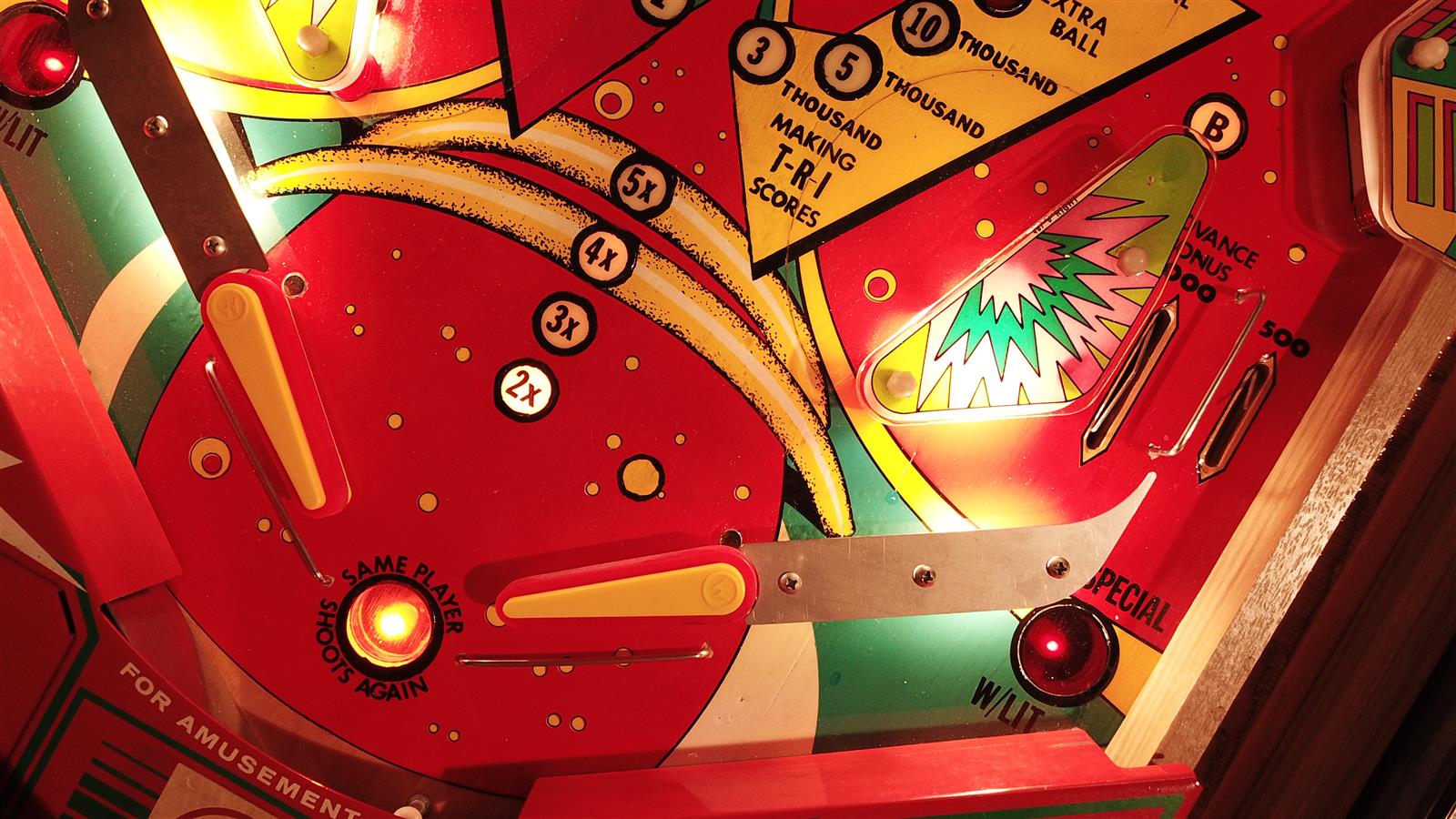

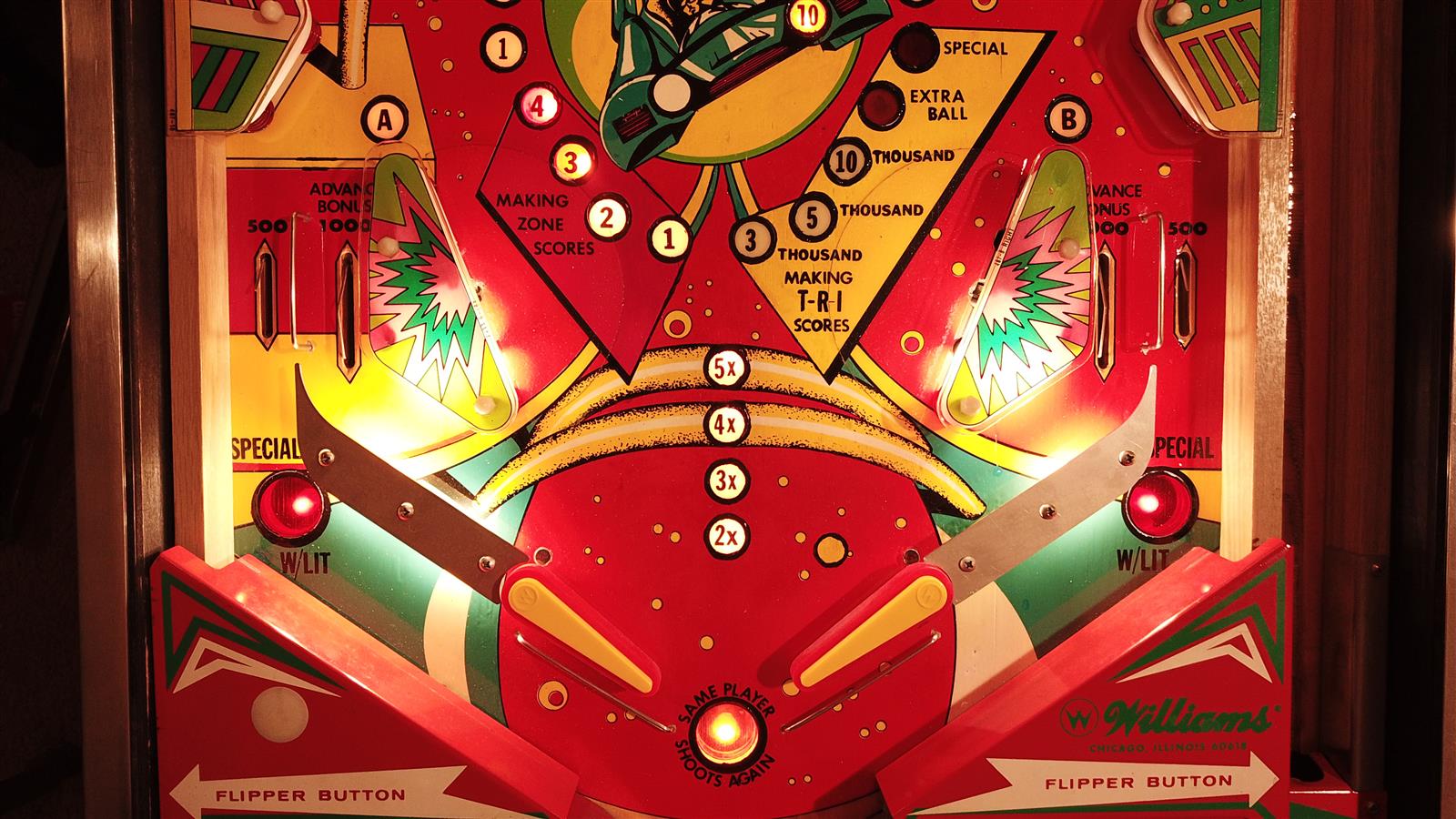

Keith Maffei upgraded his Tri-Zone with my enhanced A-8108 set- check the super clean line for the ball to roll on- Smooooth!

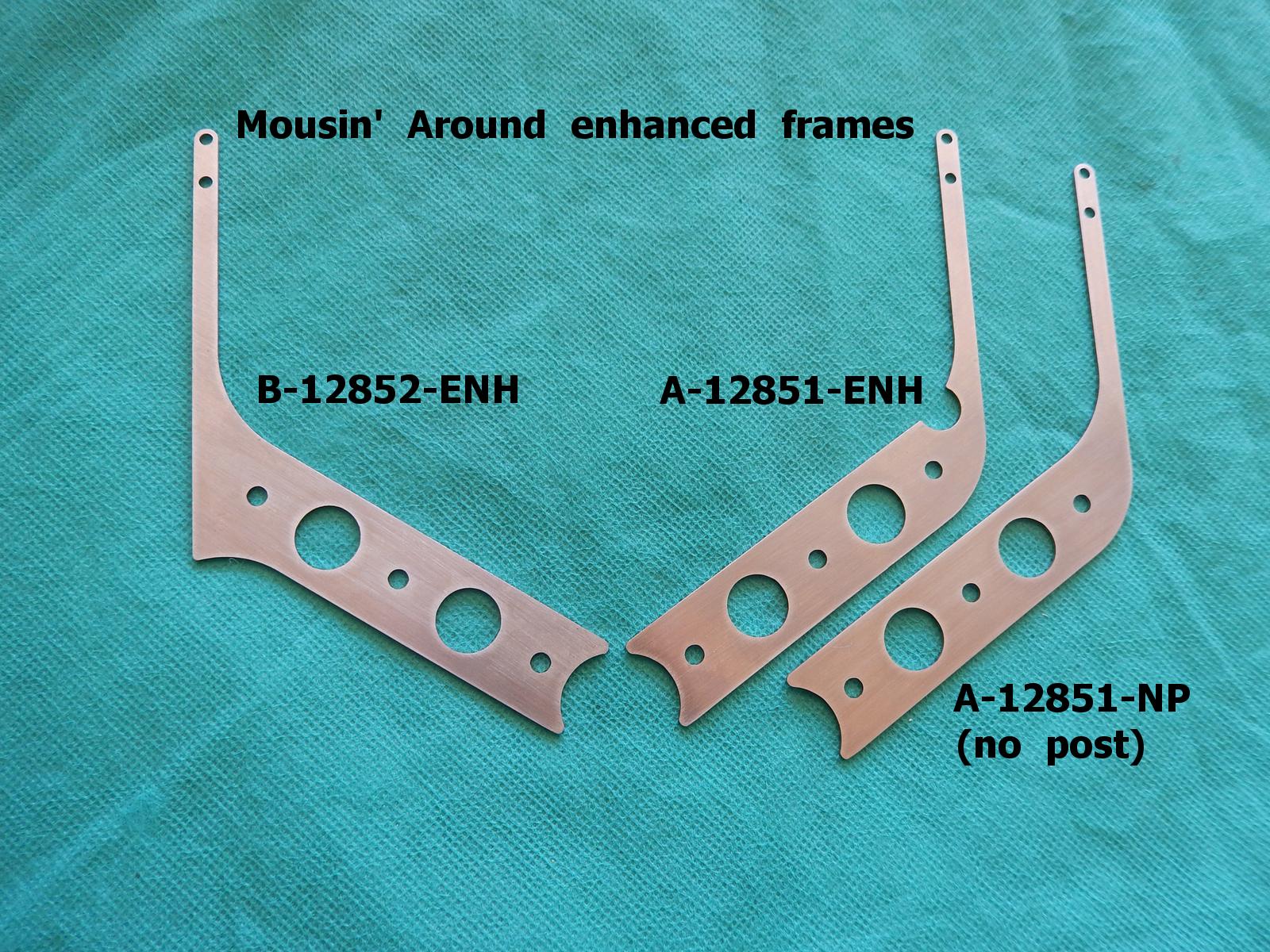

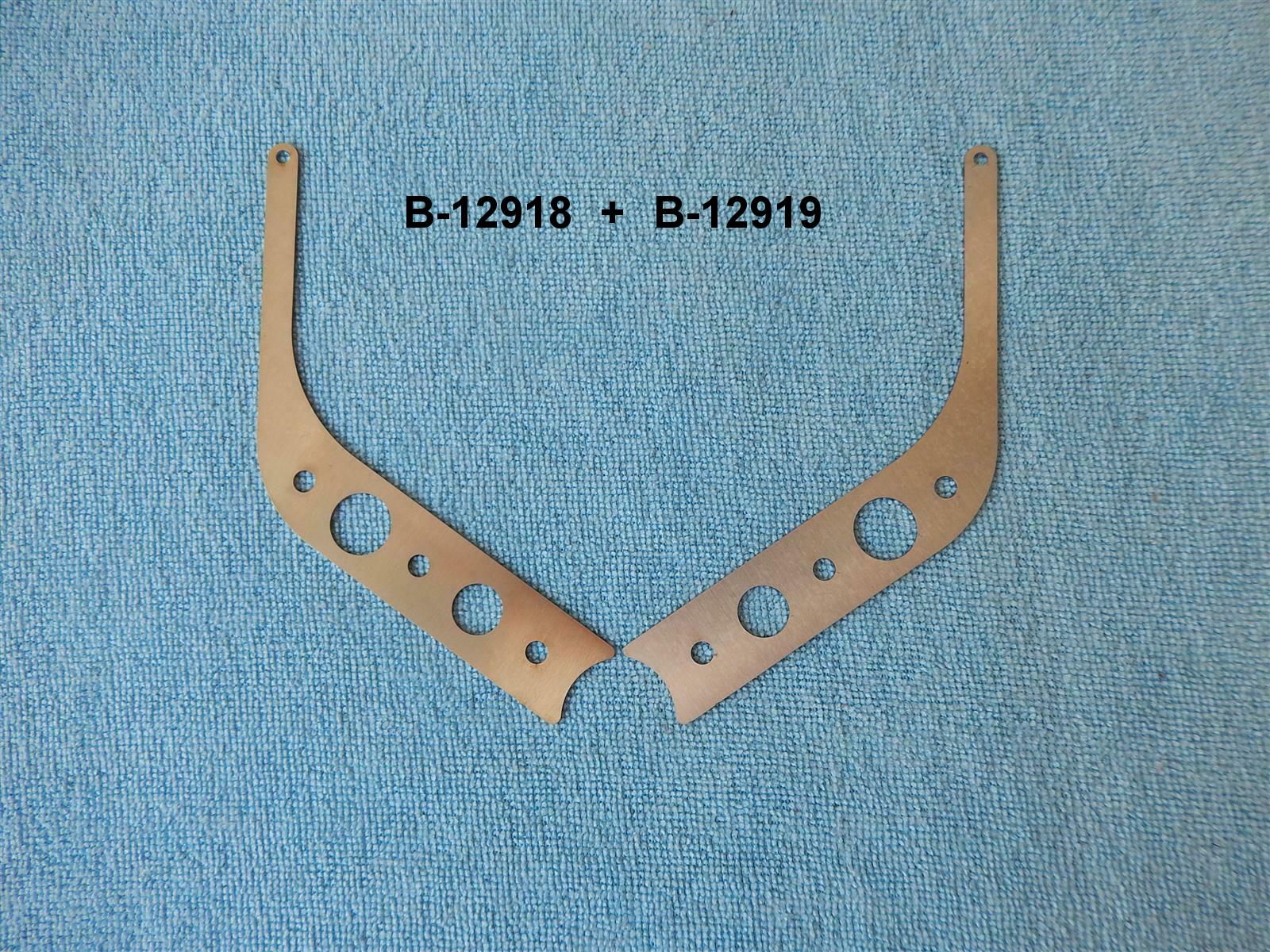

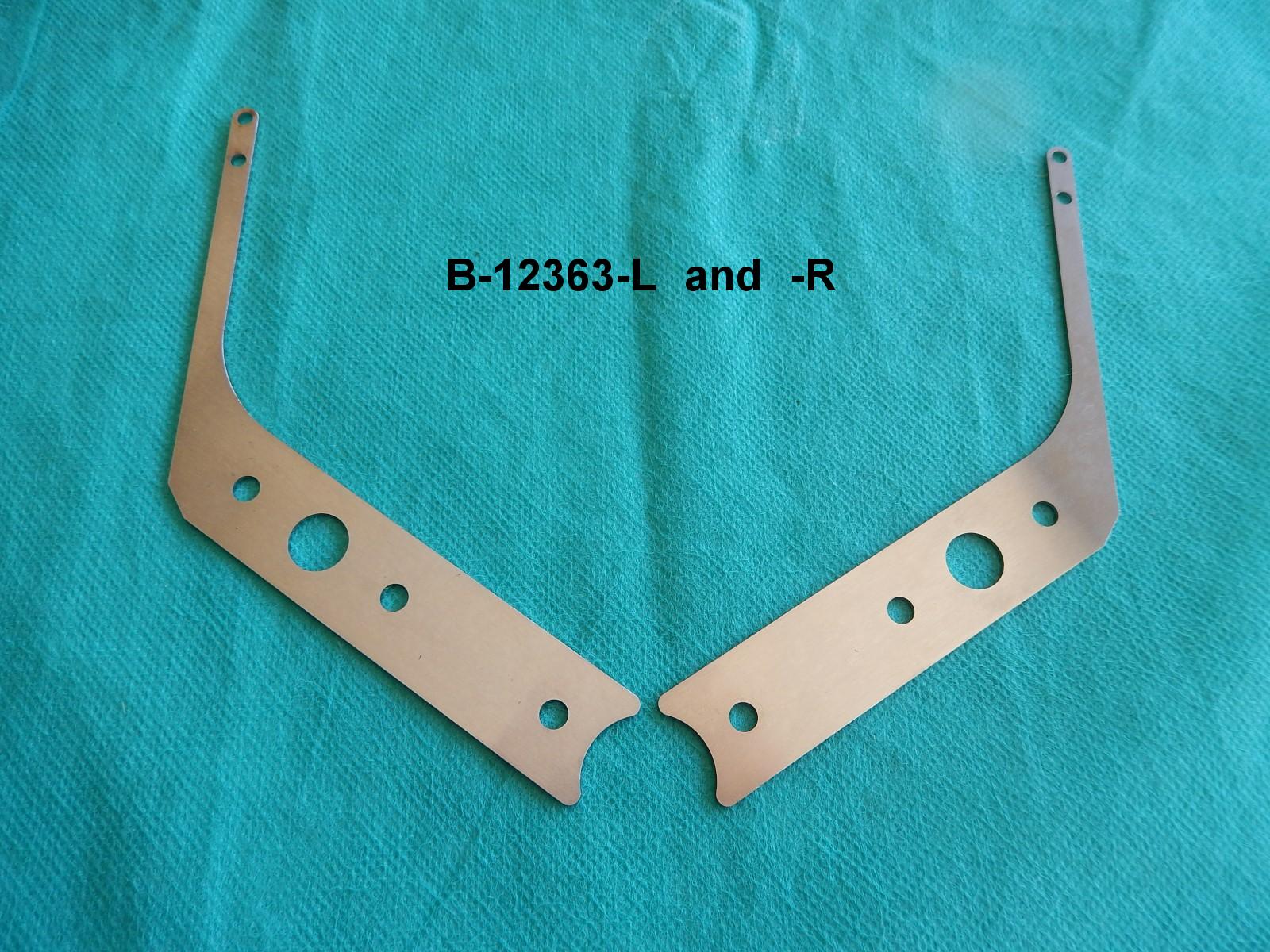

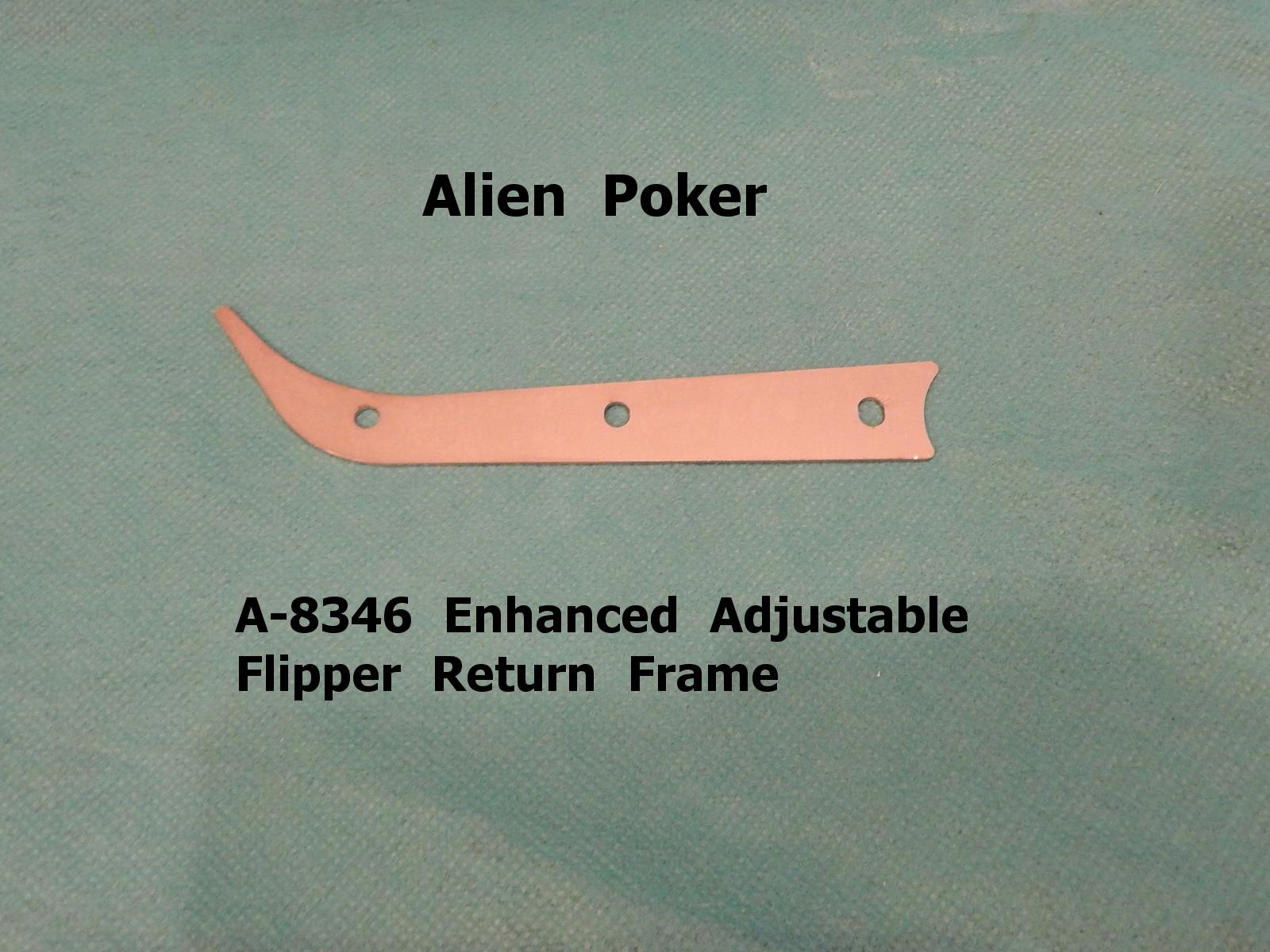

Common Williams	Addams Family	Alien Poker	Andromeda (Game Plan)	Attack From Mars / Medieval Madness - Enhanced or OEM!	B-12363 Bad Cats, Jokerz, Diner, Hurricane, Police Force

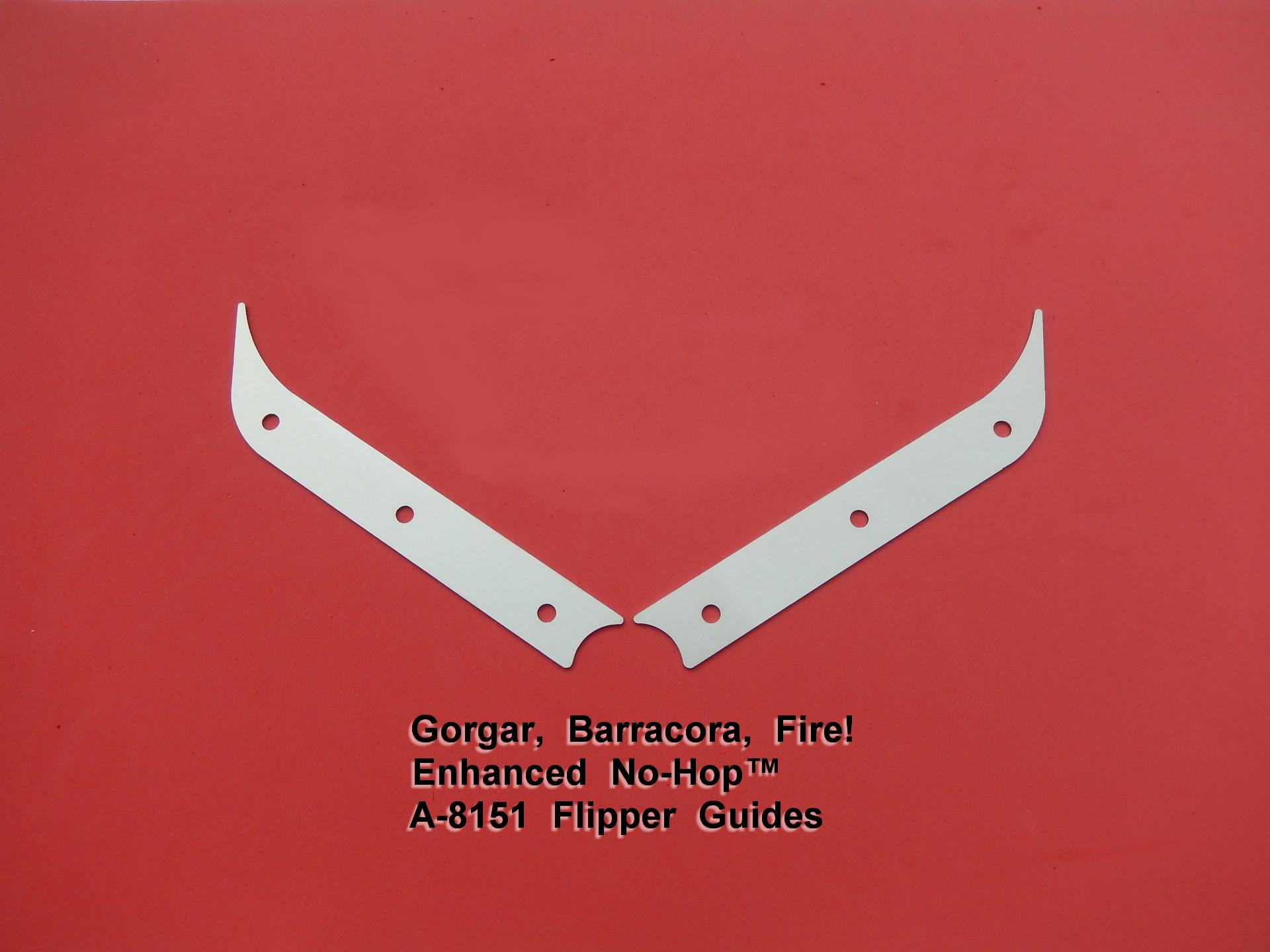

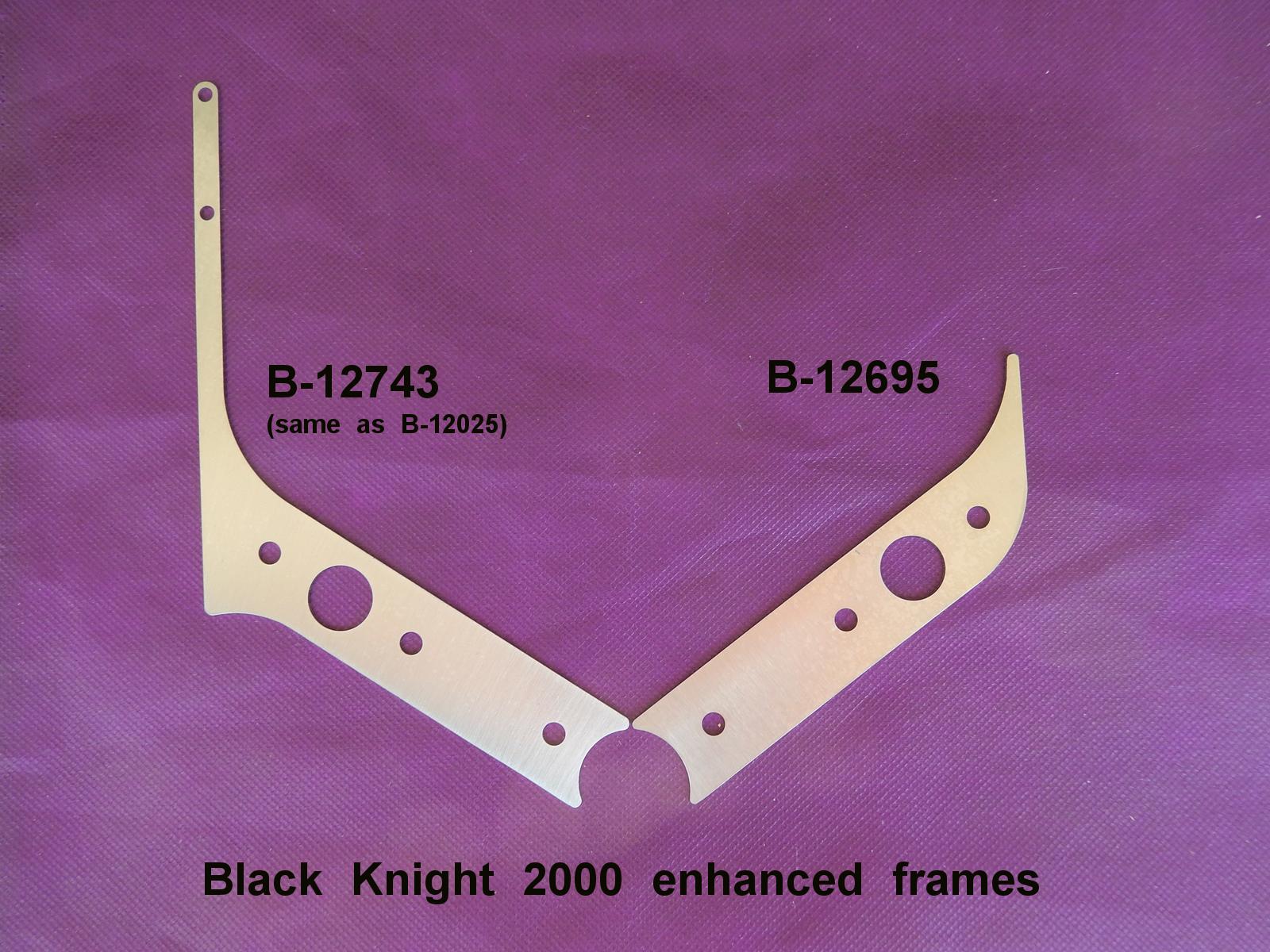

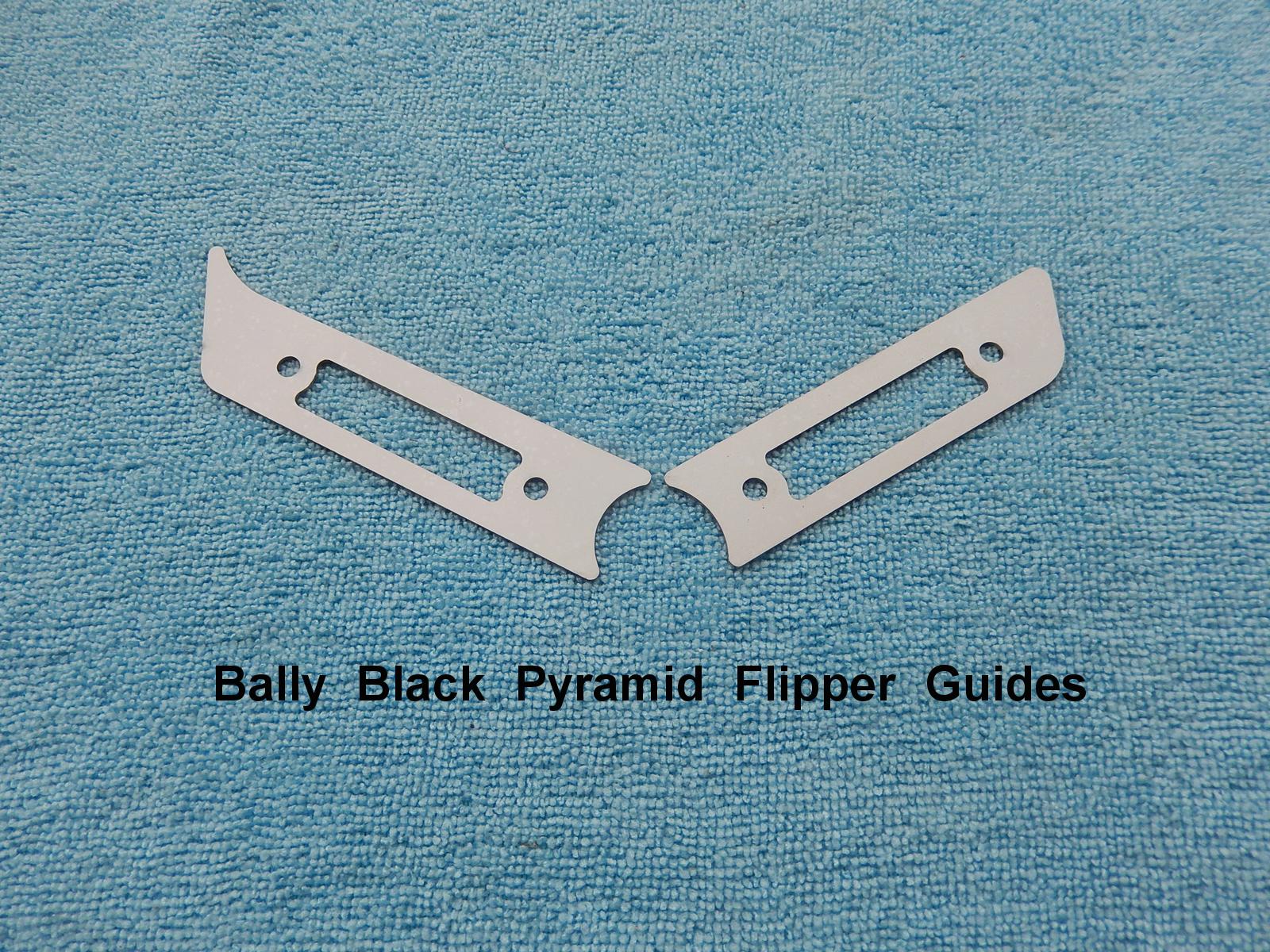

Banzai Run! Go for the hill!	Barracora, Gorgar, Fire! Phoenix (adapted)	Big Guns	Black Knight 2000	Black Pyramid	Bram Stoker's Dracula

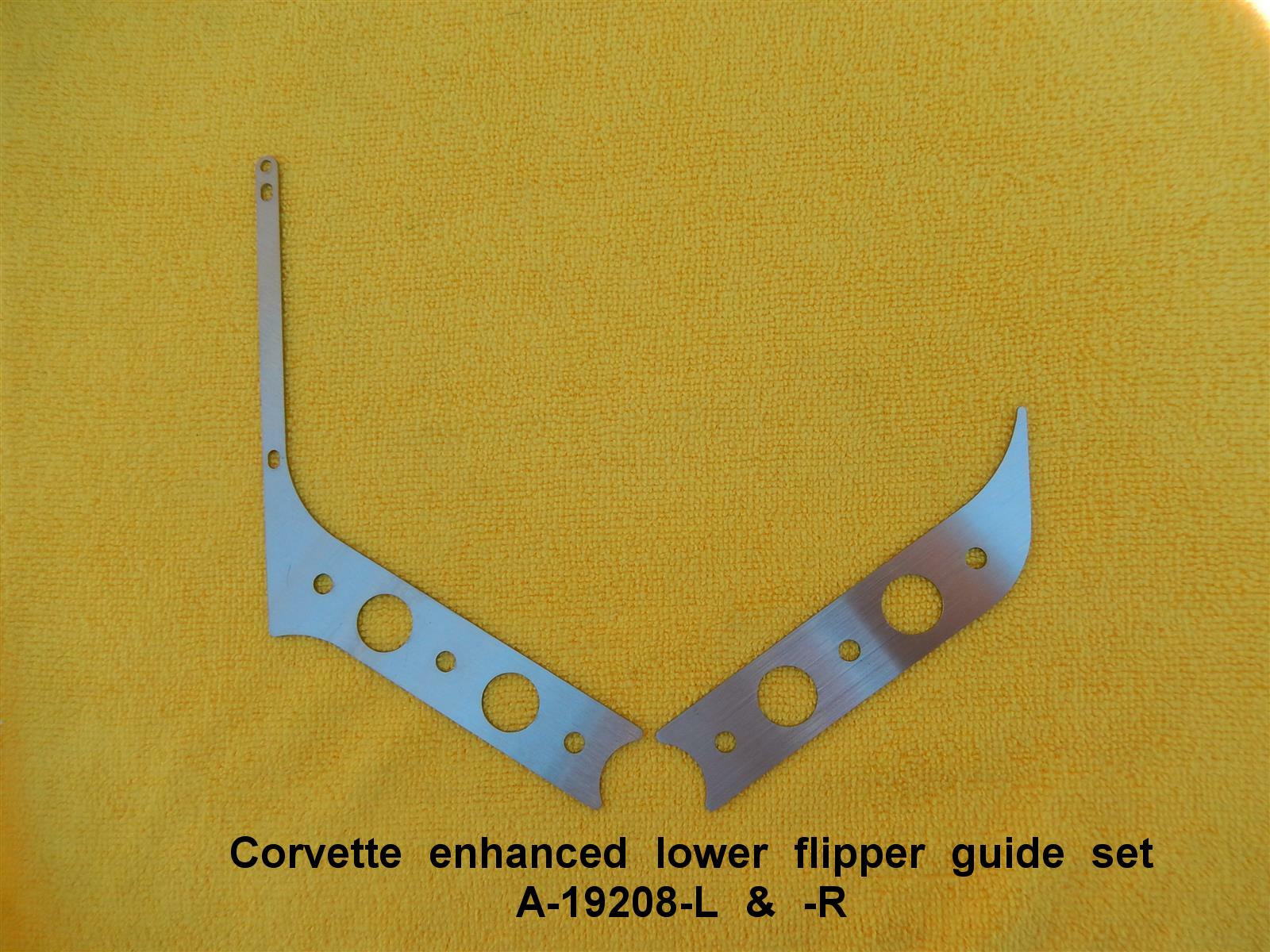

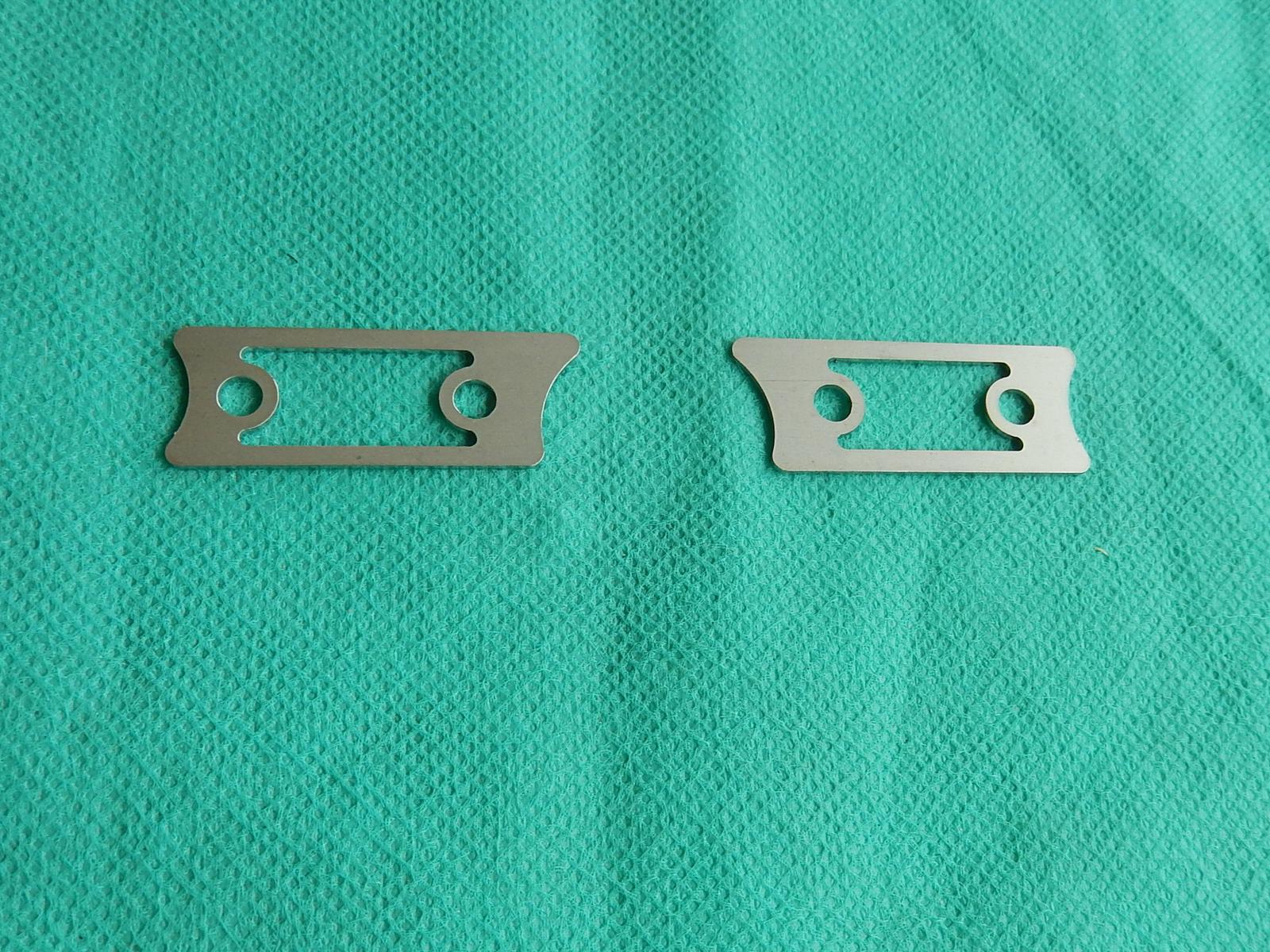

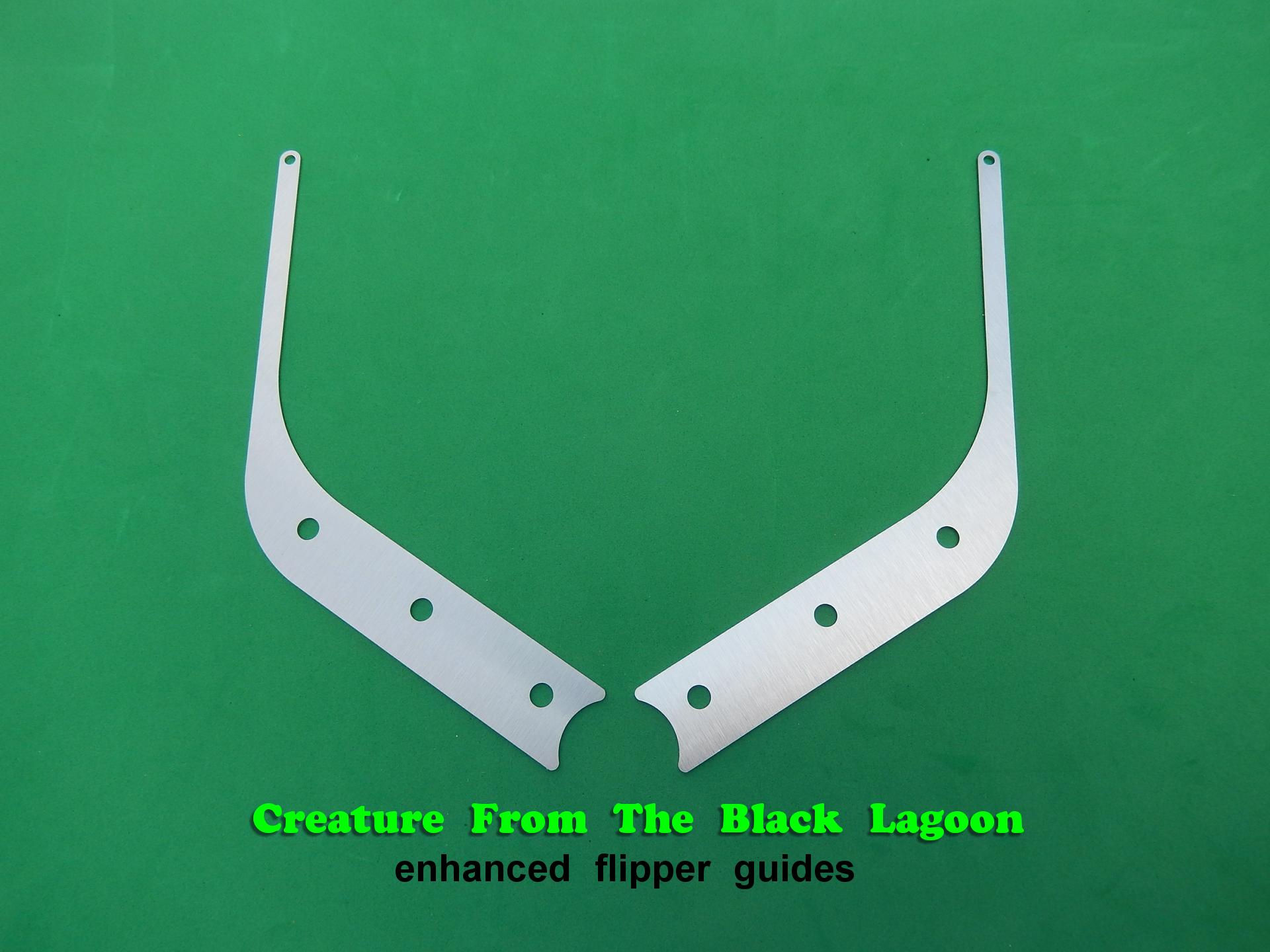

Centaur	Comet	Congo	Corvette	Creature Black Lagoon	Demolition Man

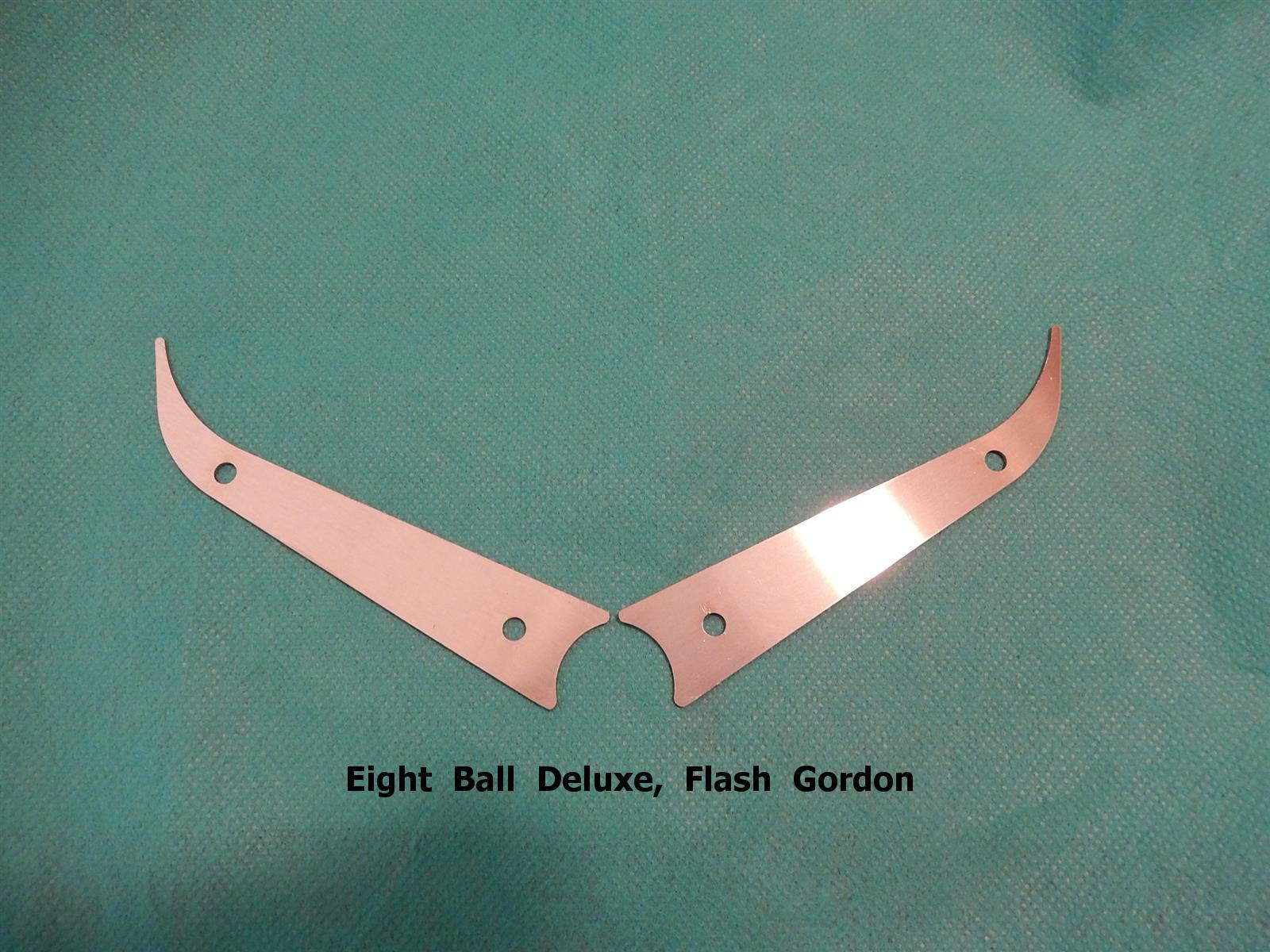

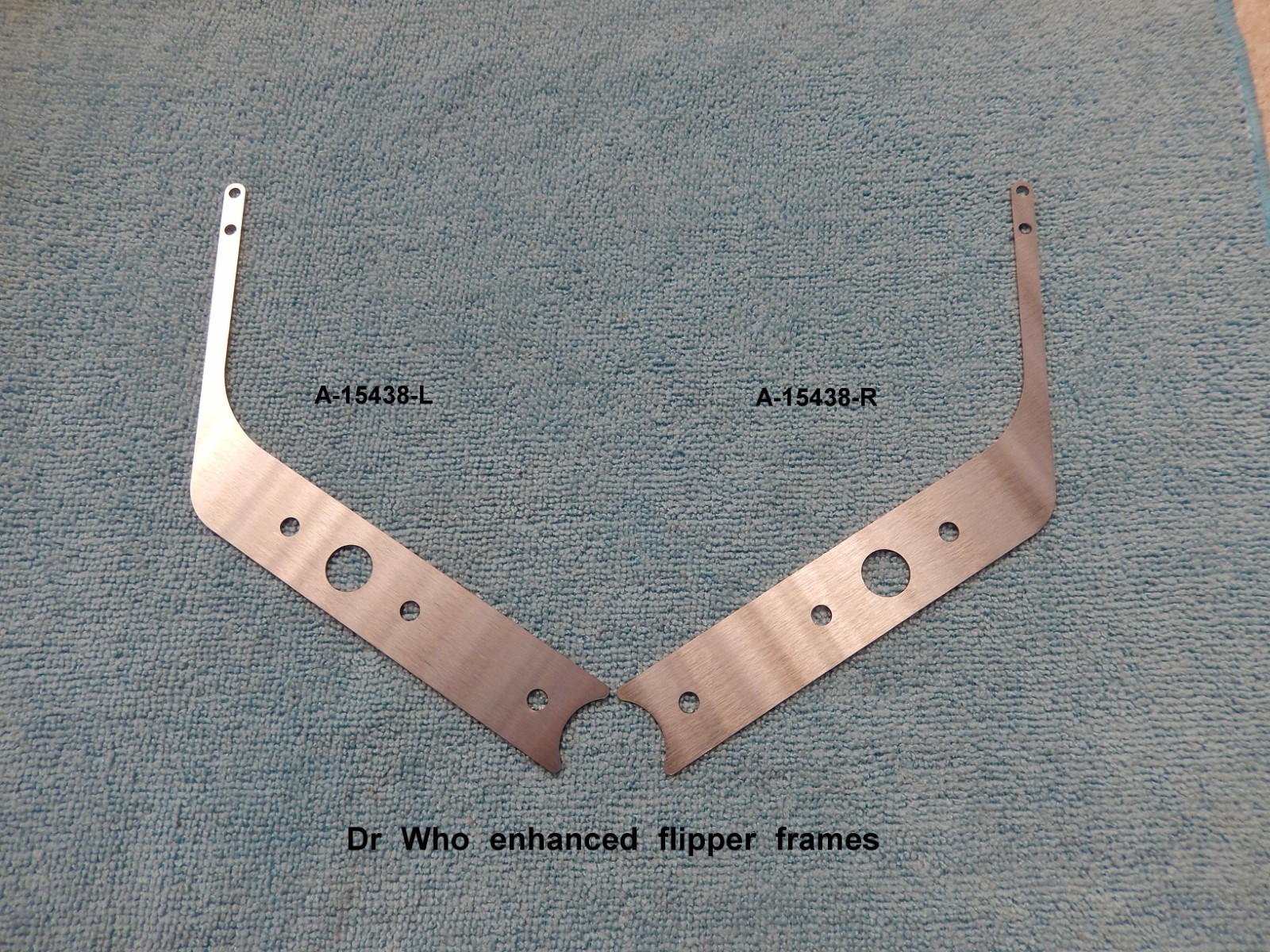

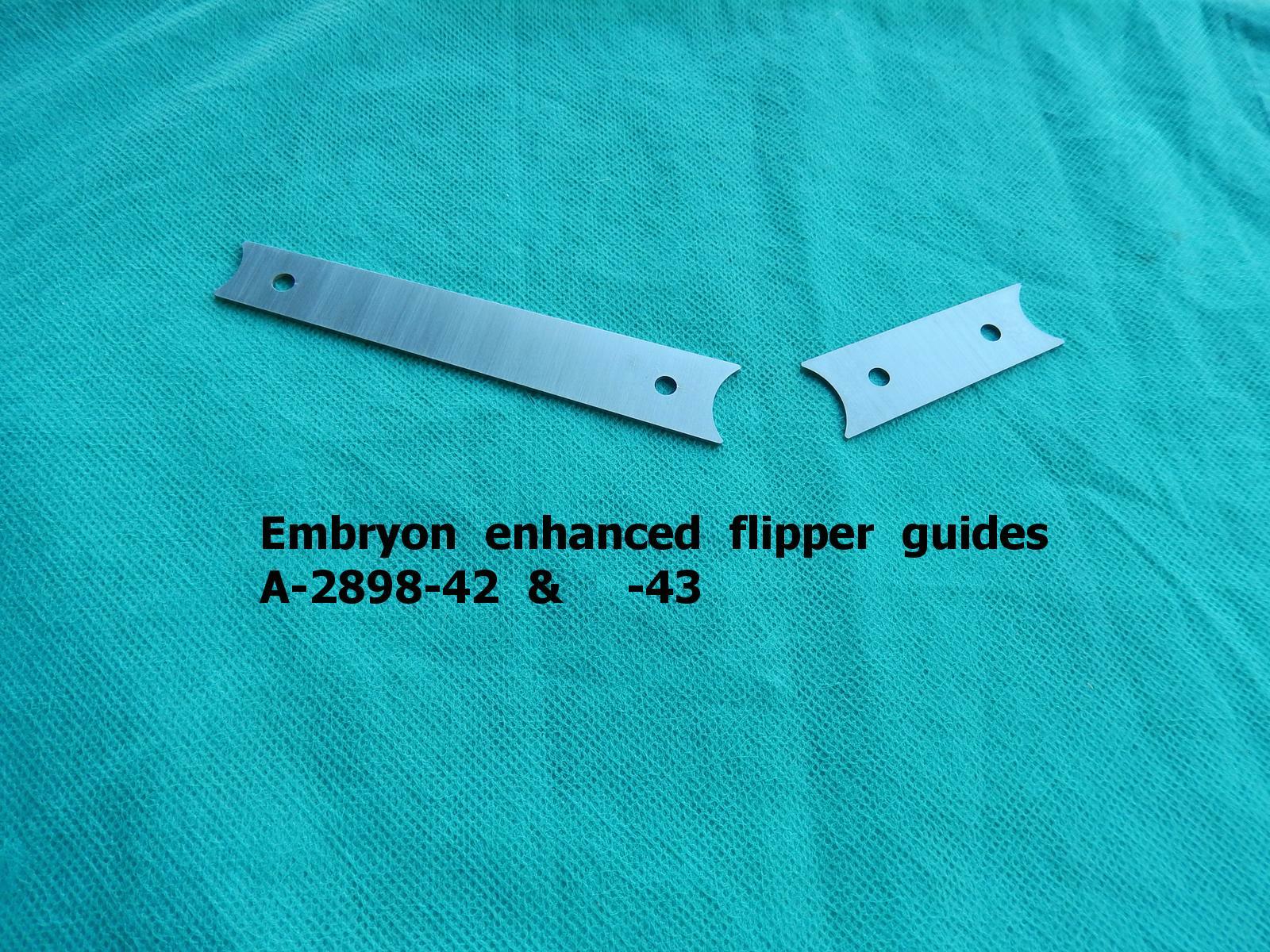

Dr Who	Earthshaker	Eight Ball Champ	Eight Ball Deluxe Flash Gordon	Embryon	Fathom

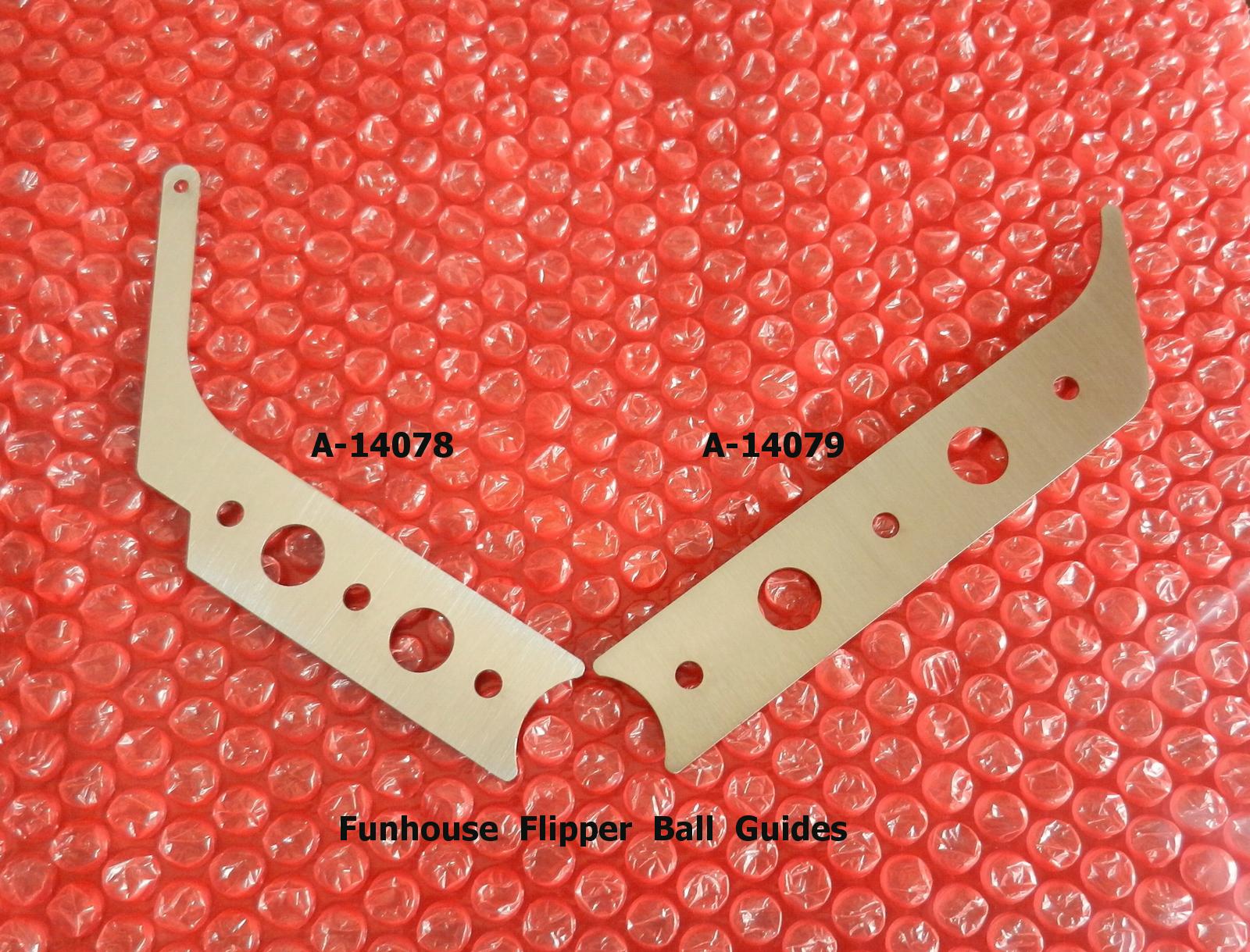

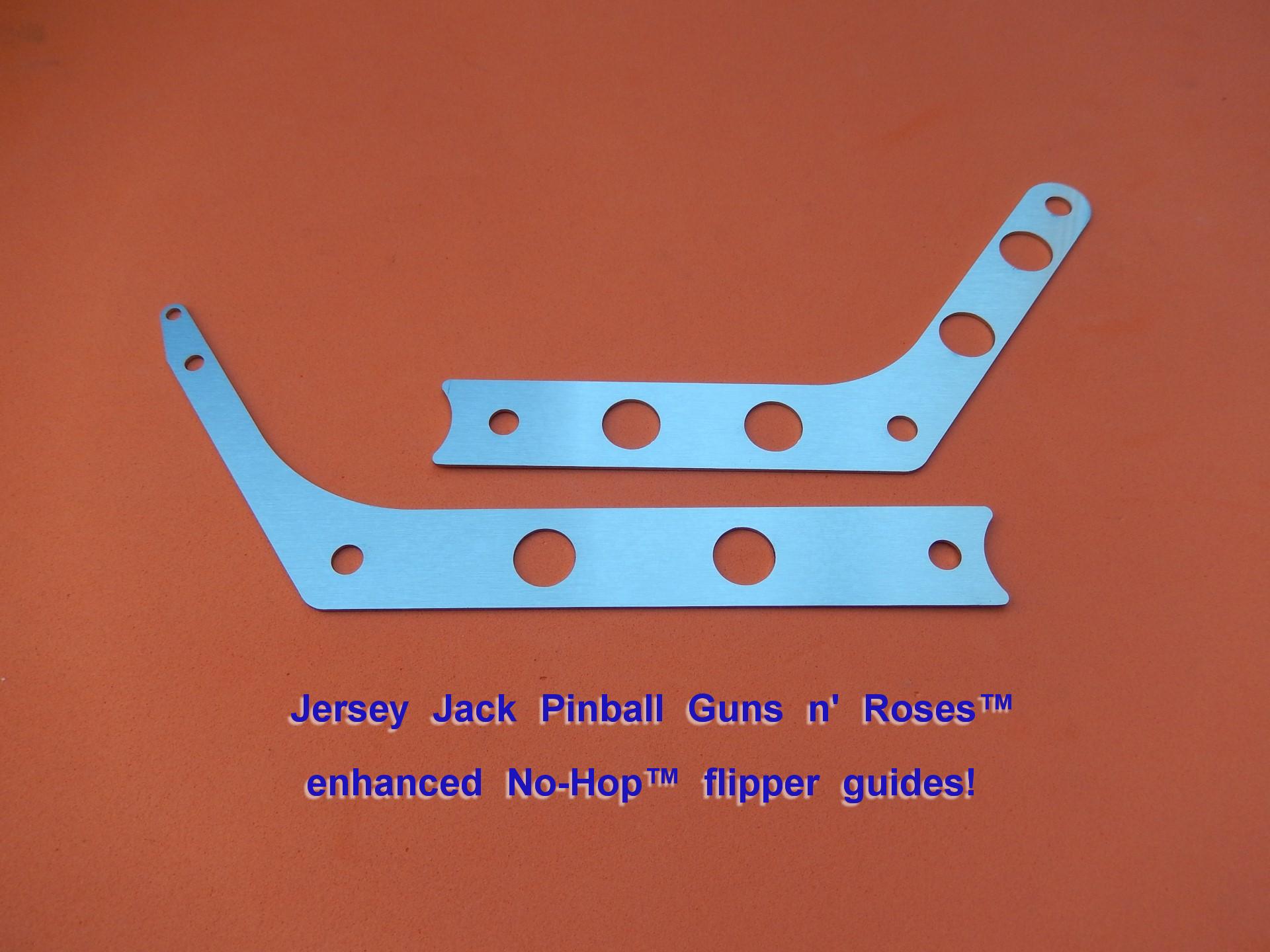

Fish Tales & Bally Pool Sharks	Funhouse	Williams Indiana Jones	JJP Guns n' Roses	Mousin' Around	No Fear

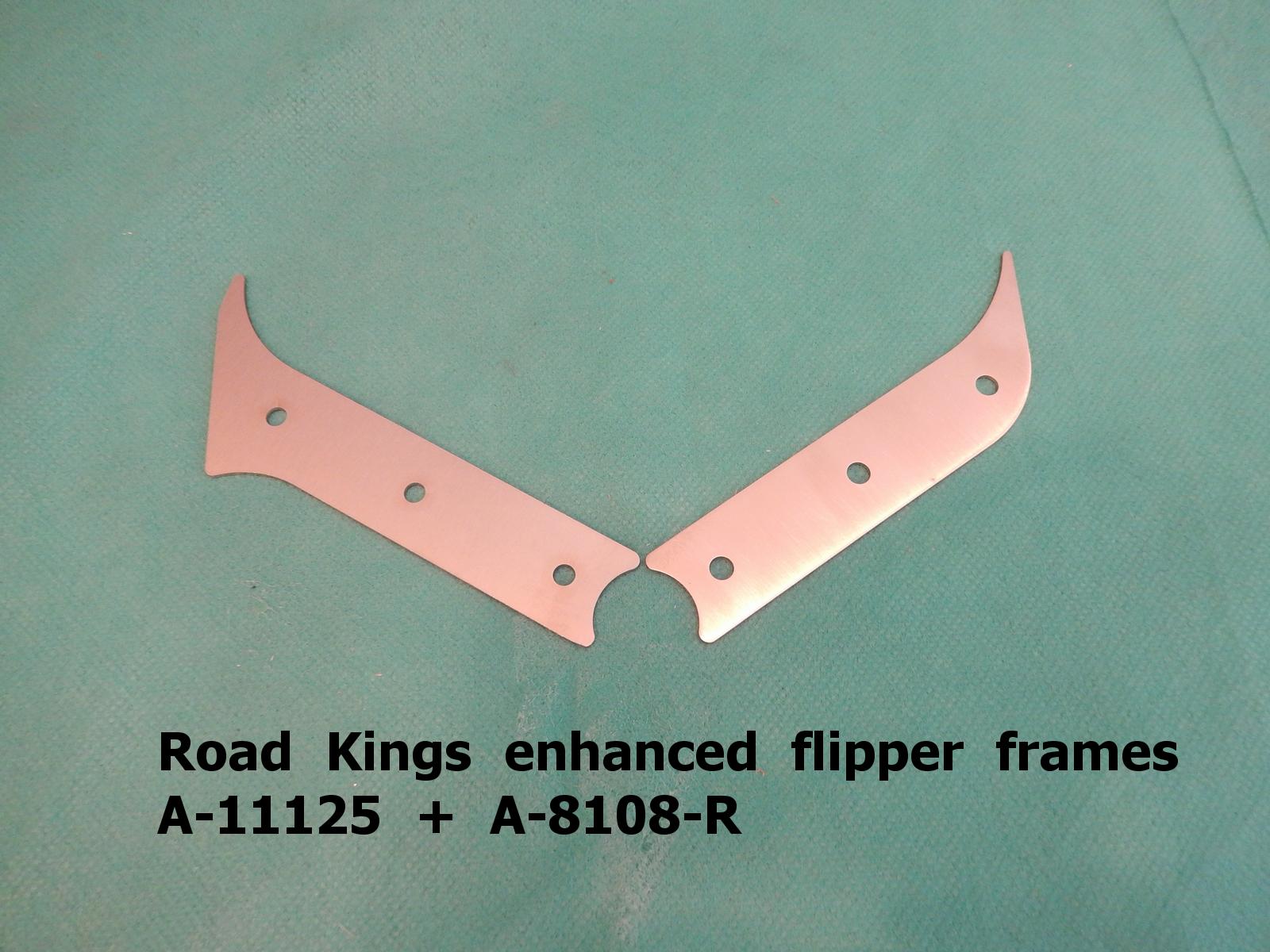

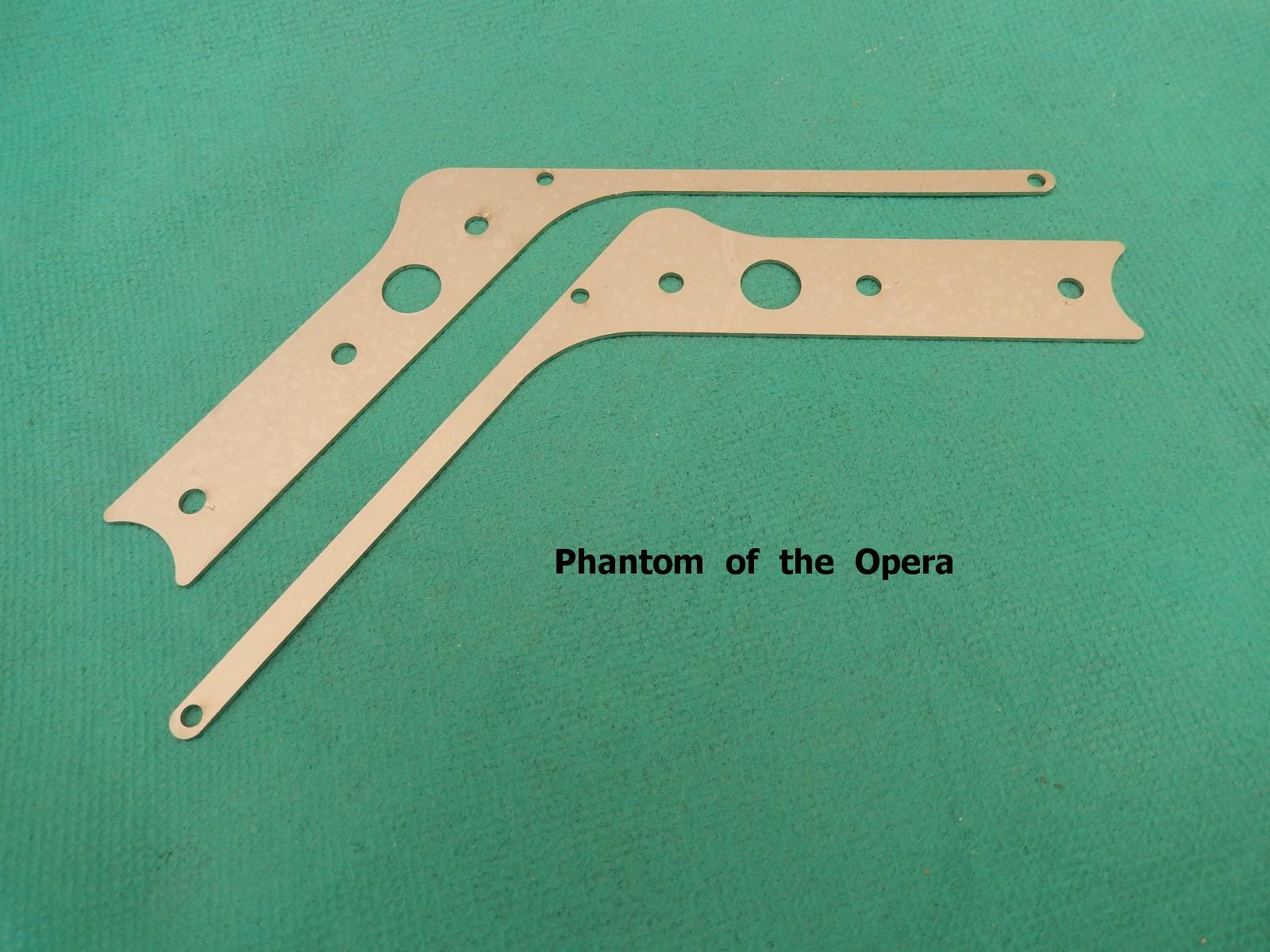

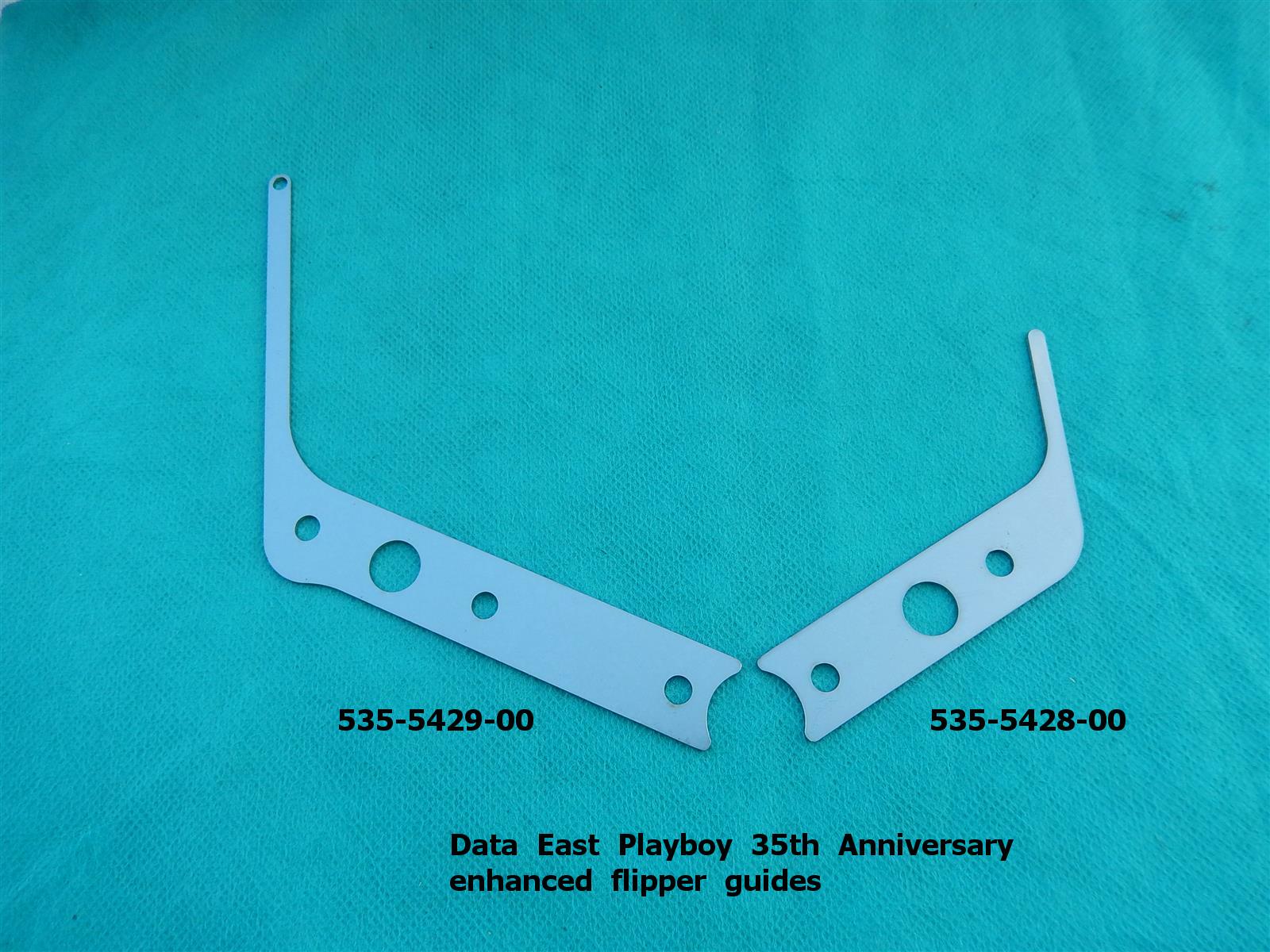

No Good Gofers!	Phantom of the Opera	DE Playboy 35th	Road Kings	Scorpion, Stellar Wars	Shadow

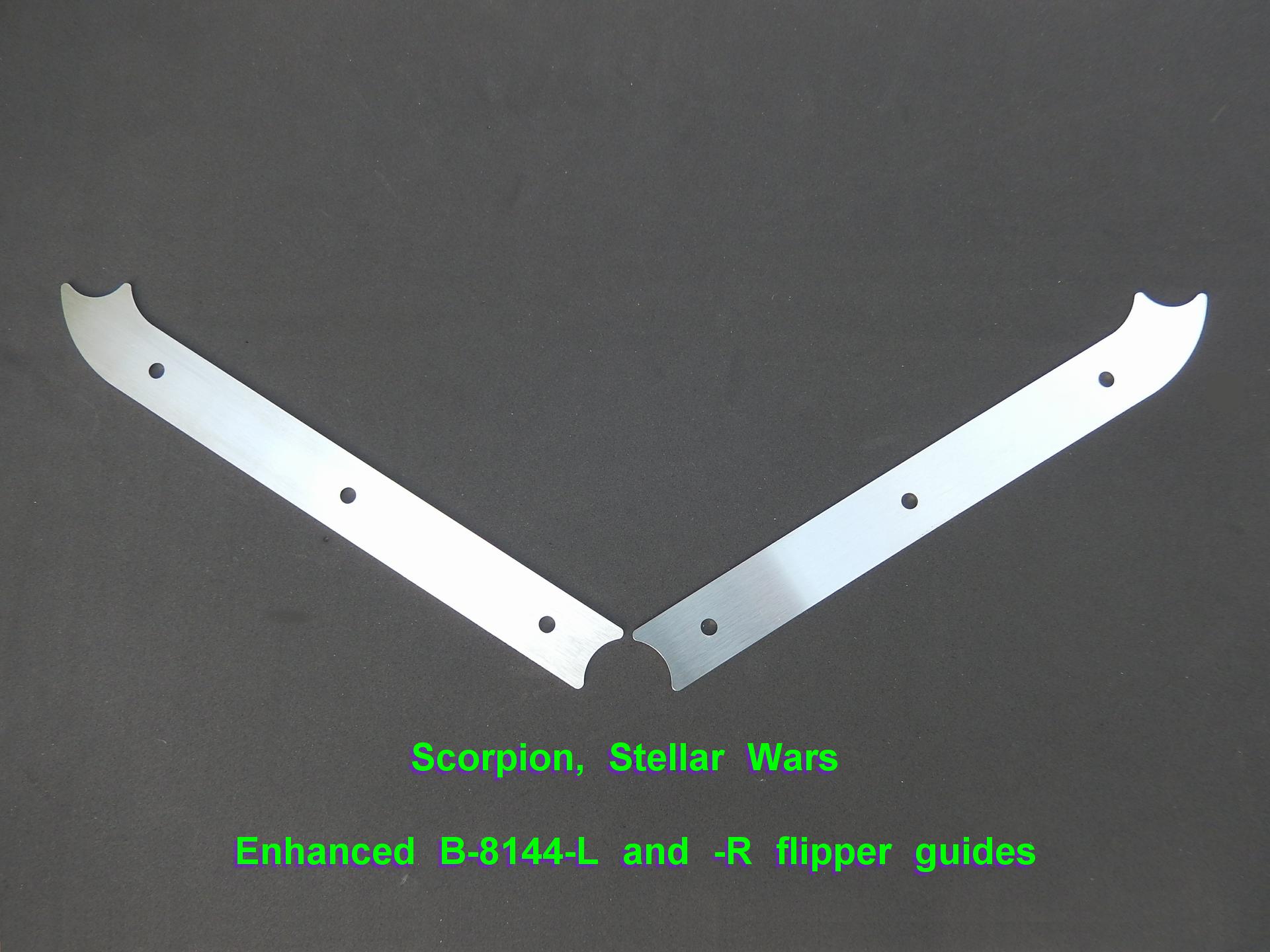

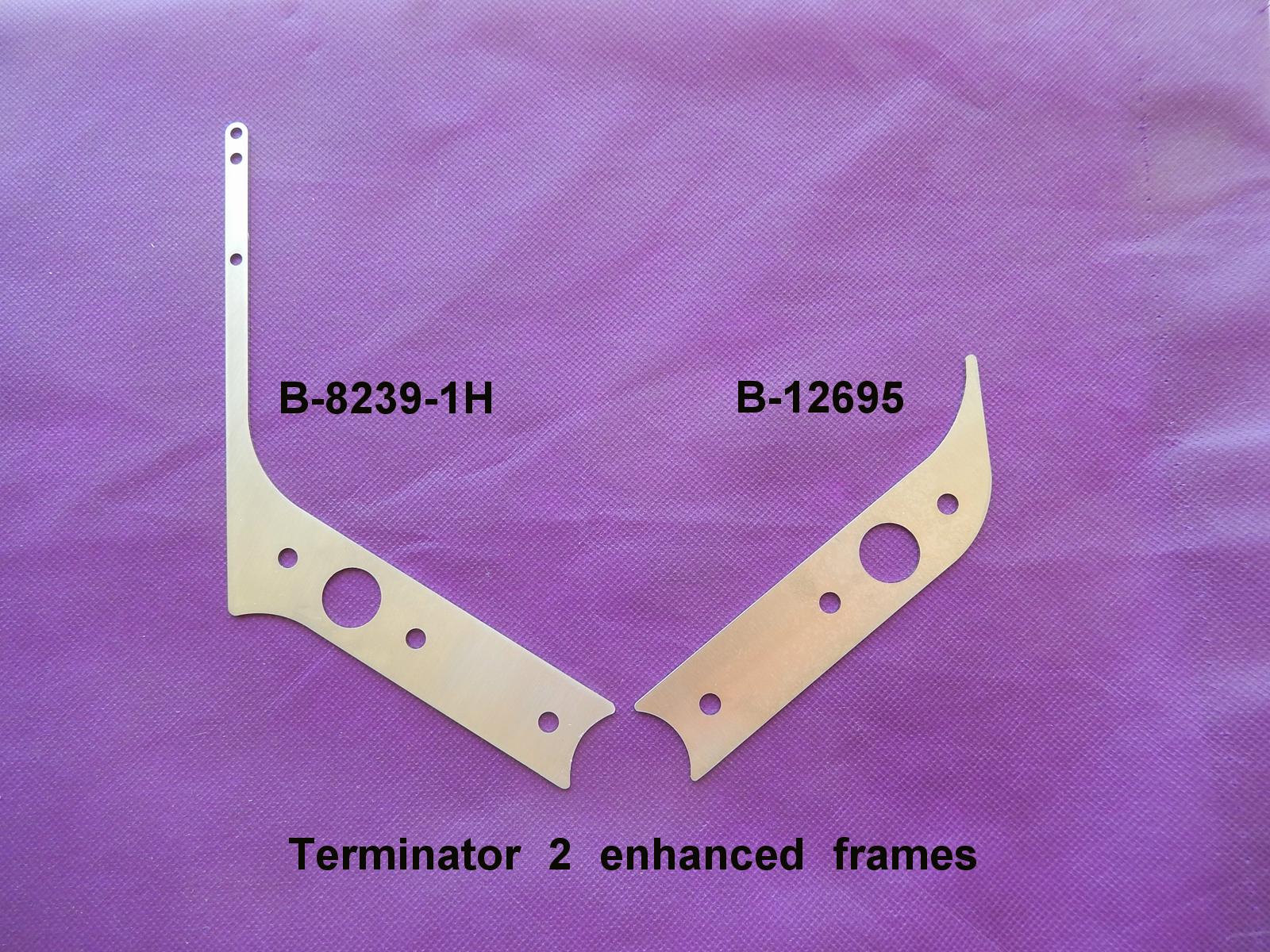

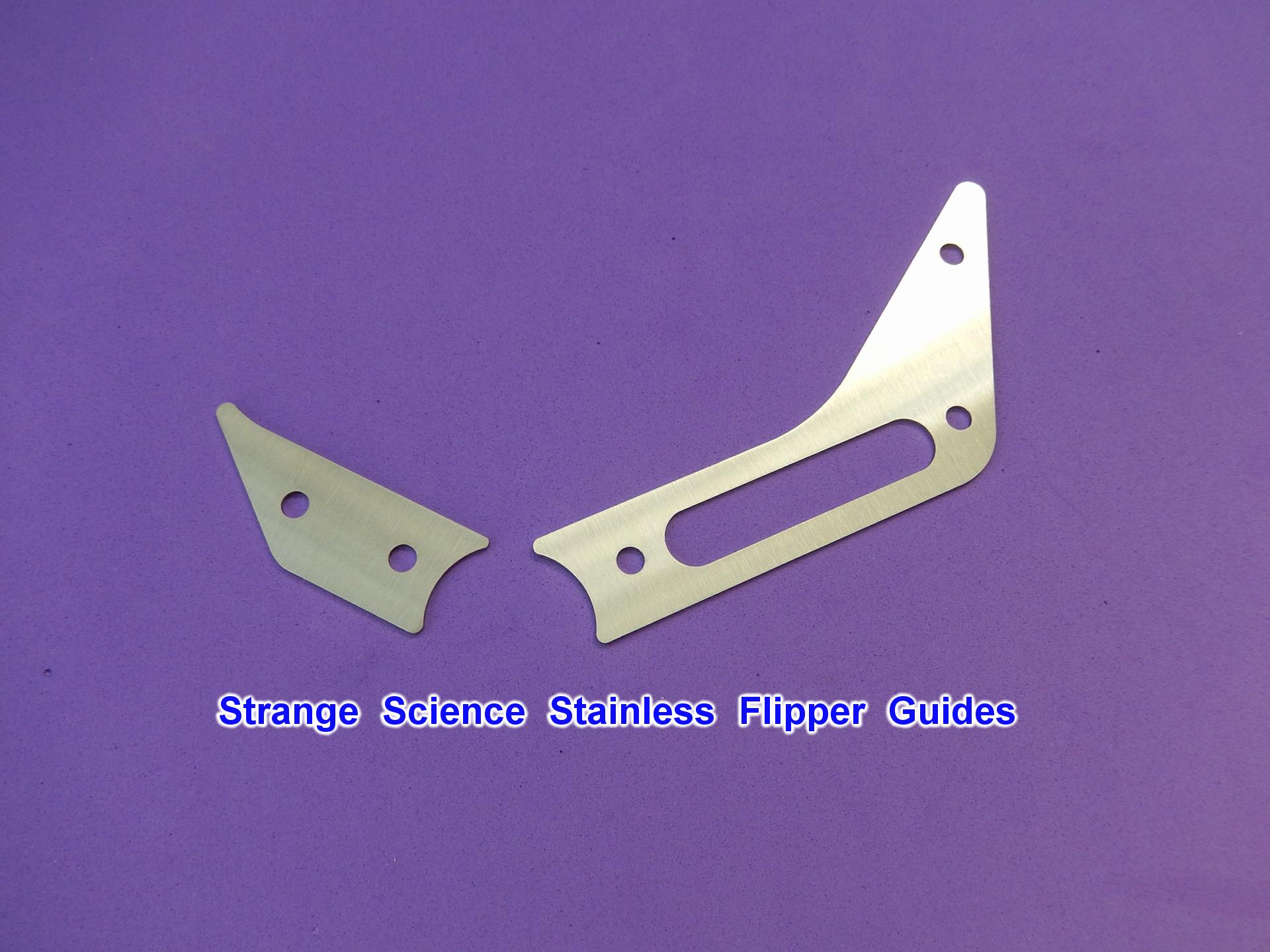

Simpsons - Data East	Space Shuttle	Star Trek Next Generation	Strange Science!	Swords of Fury & Getaway-HS2 (same as A-15456-2 and -1)	Terminator 2

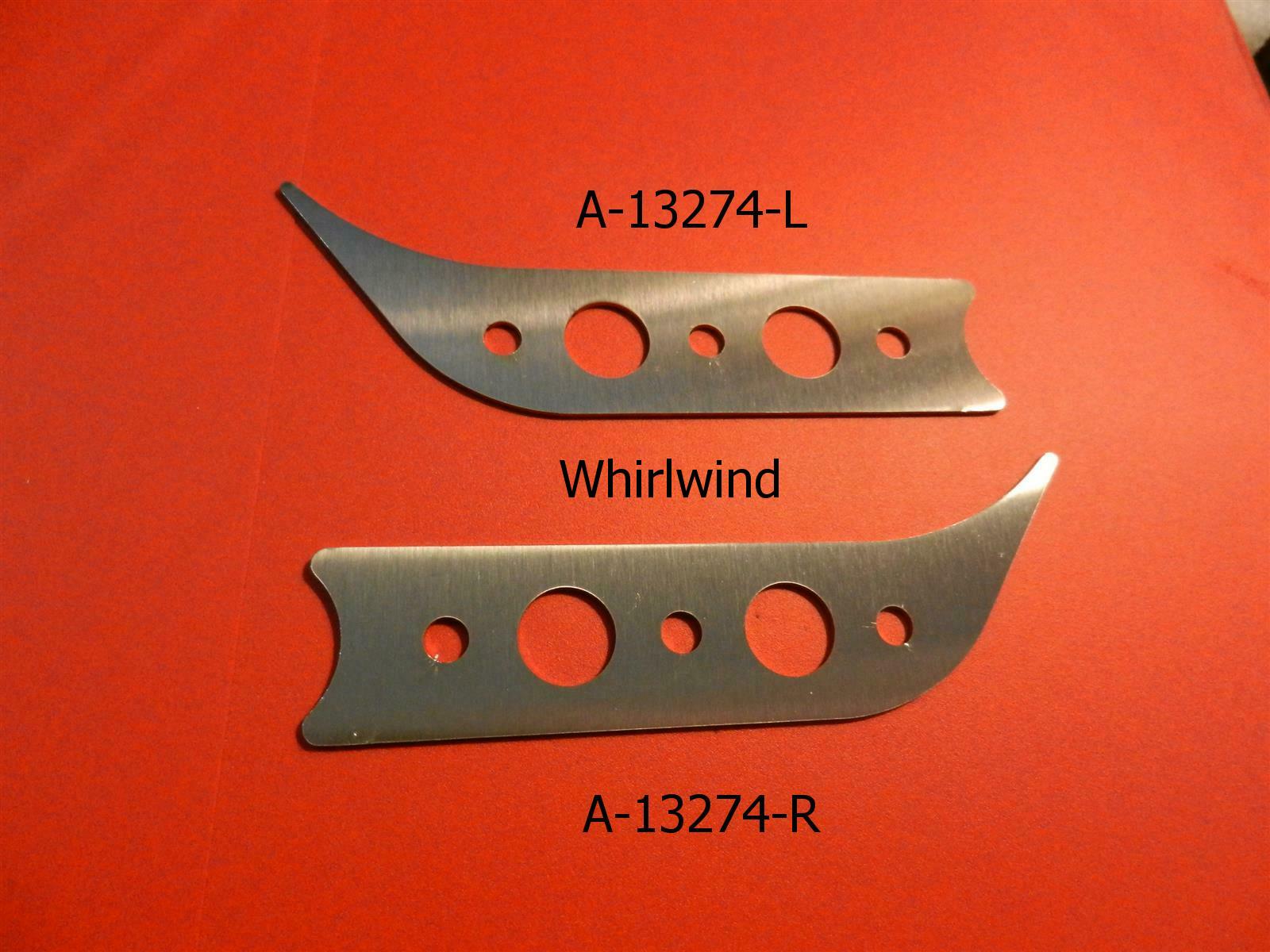

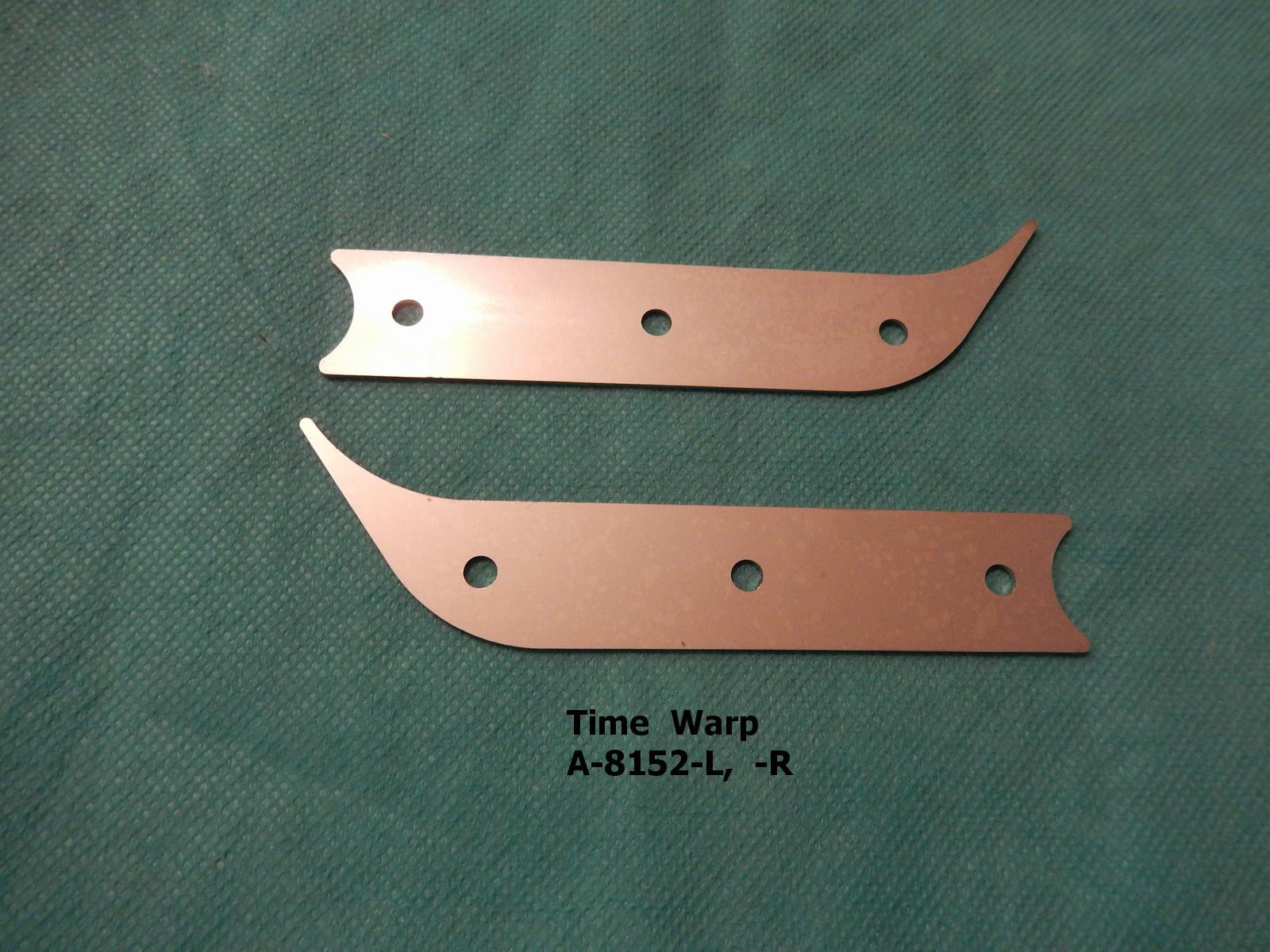

Time Warp	Twilight Zone	Whirlwind	White Water, Party Zone, Dr Dude, Elvira Party Monsters

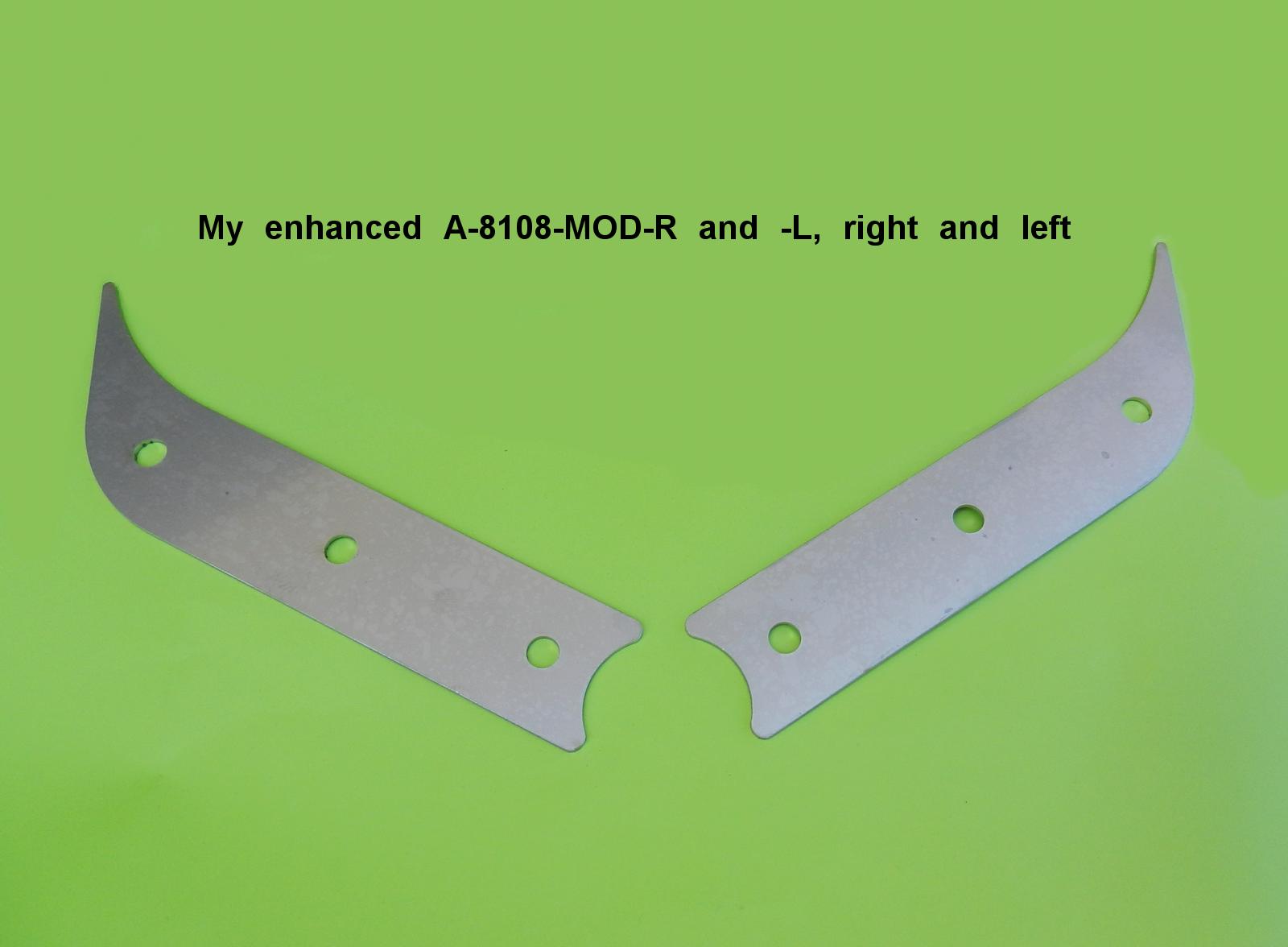

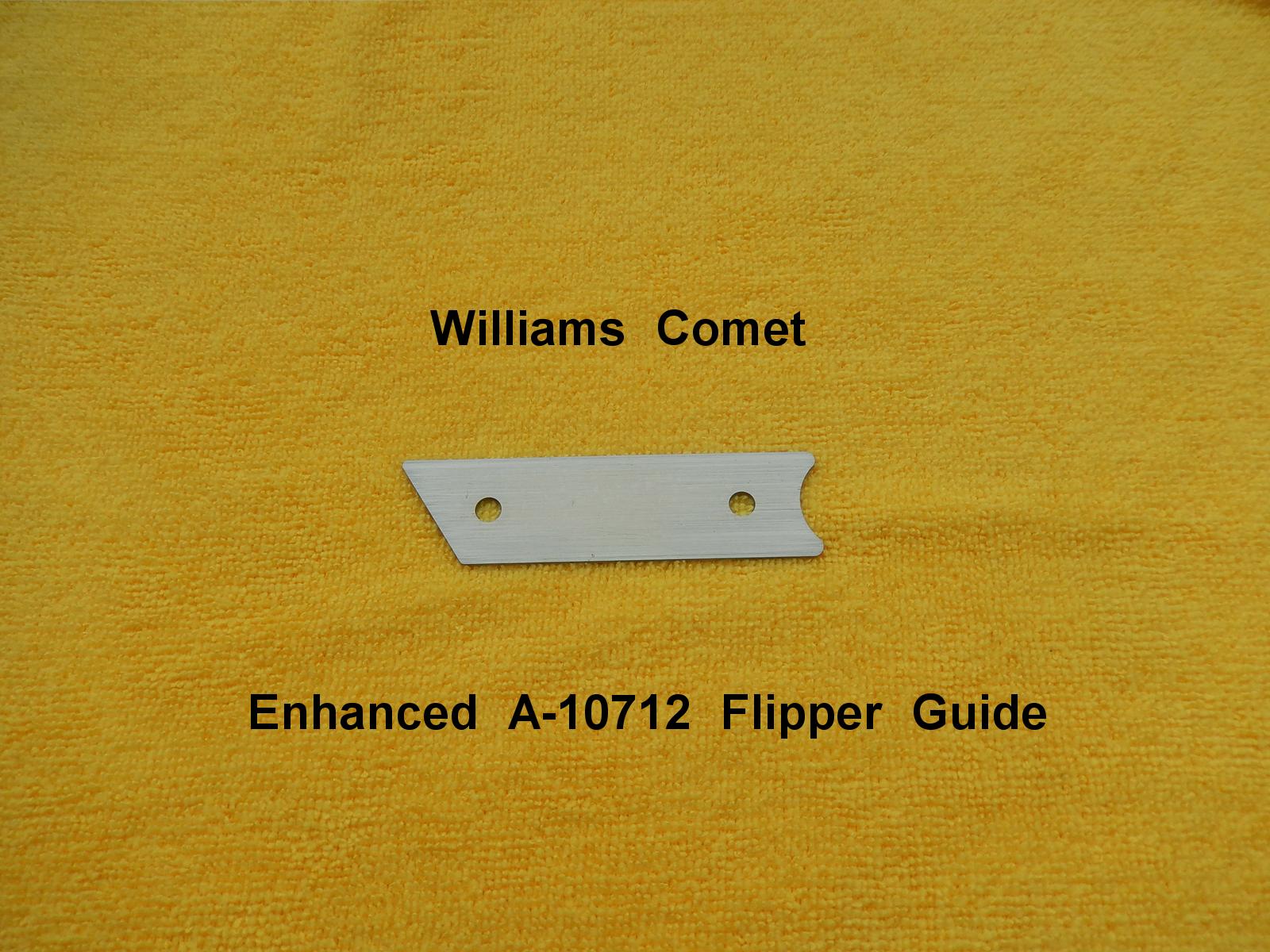

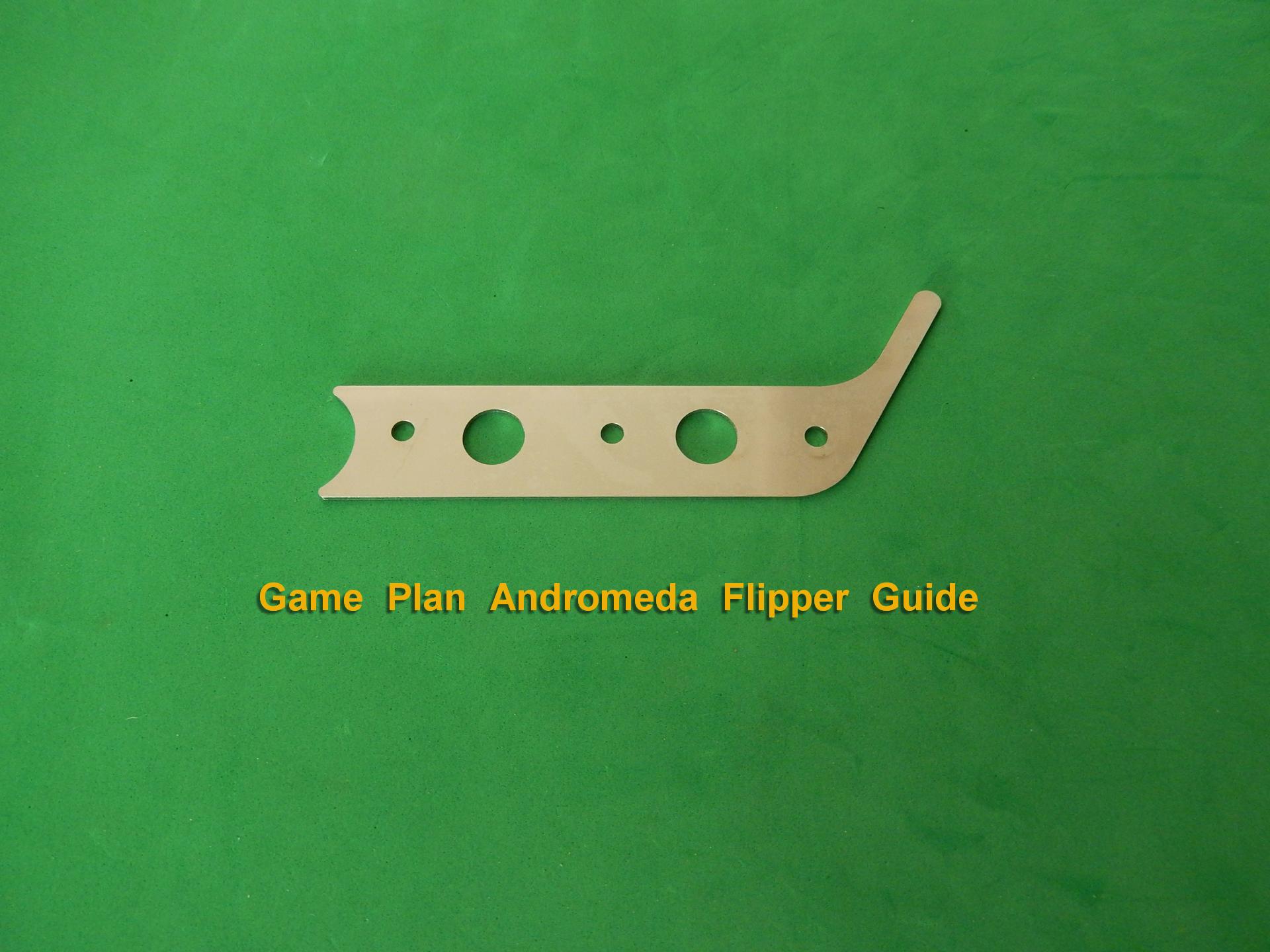

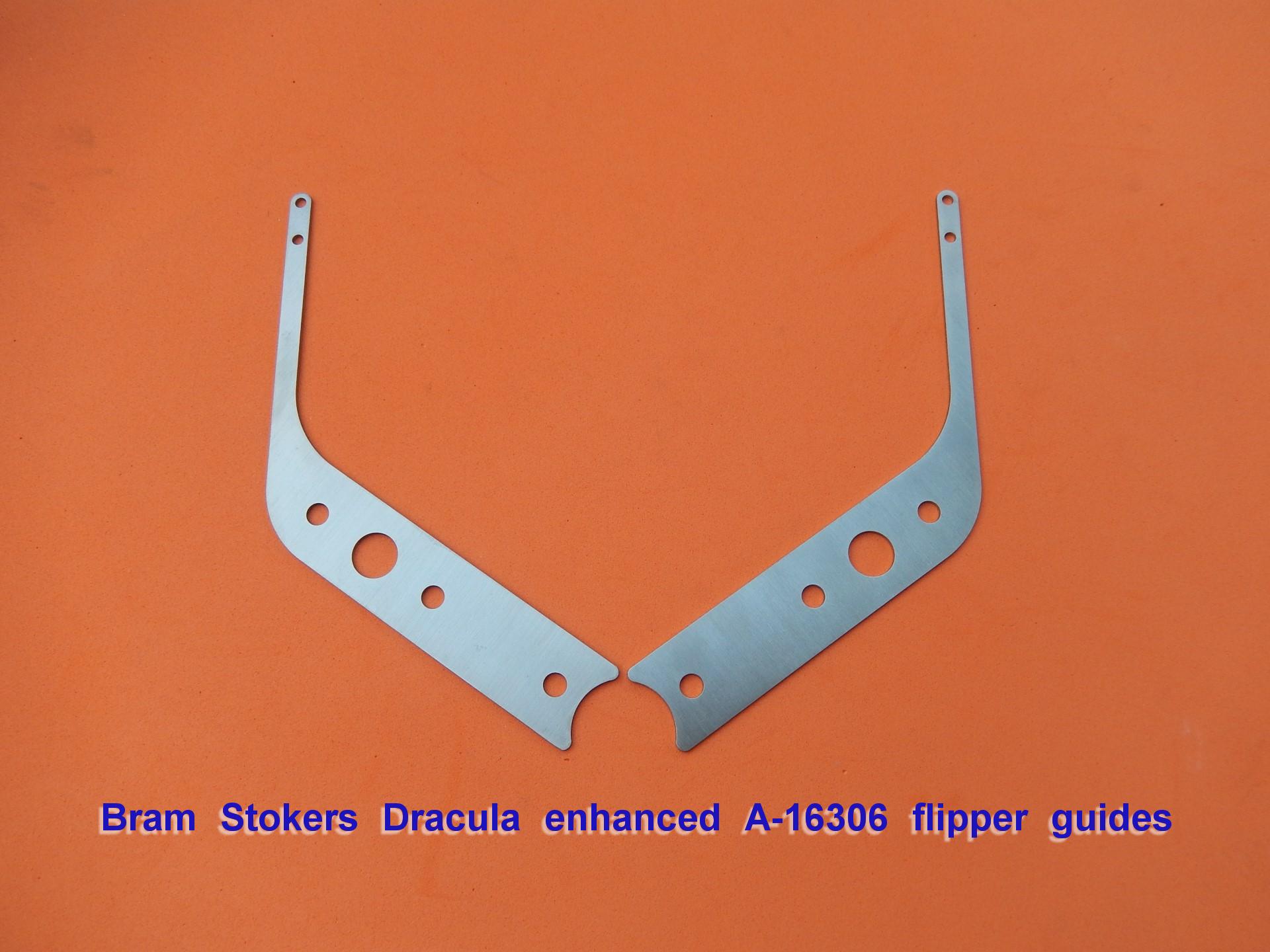

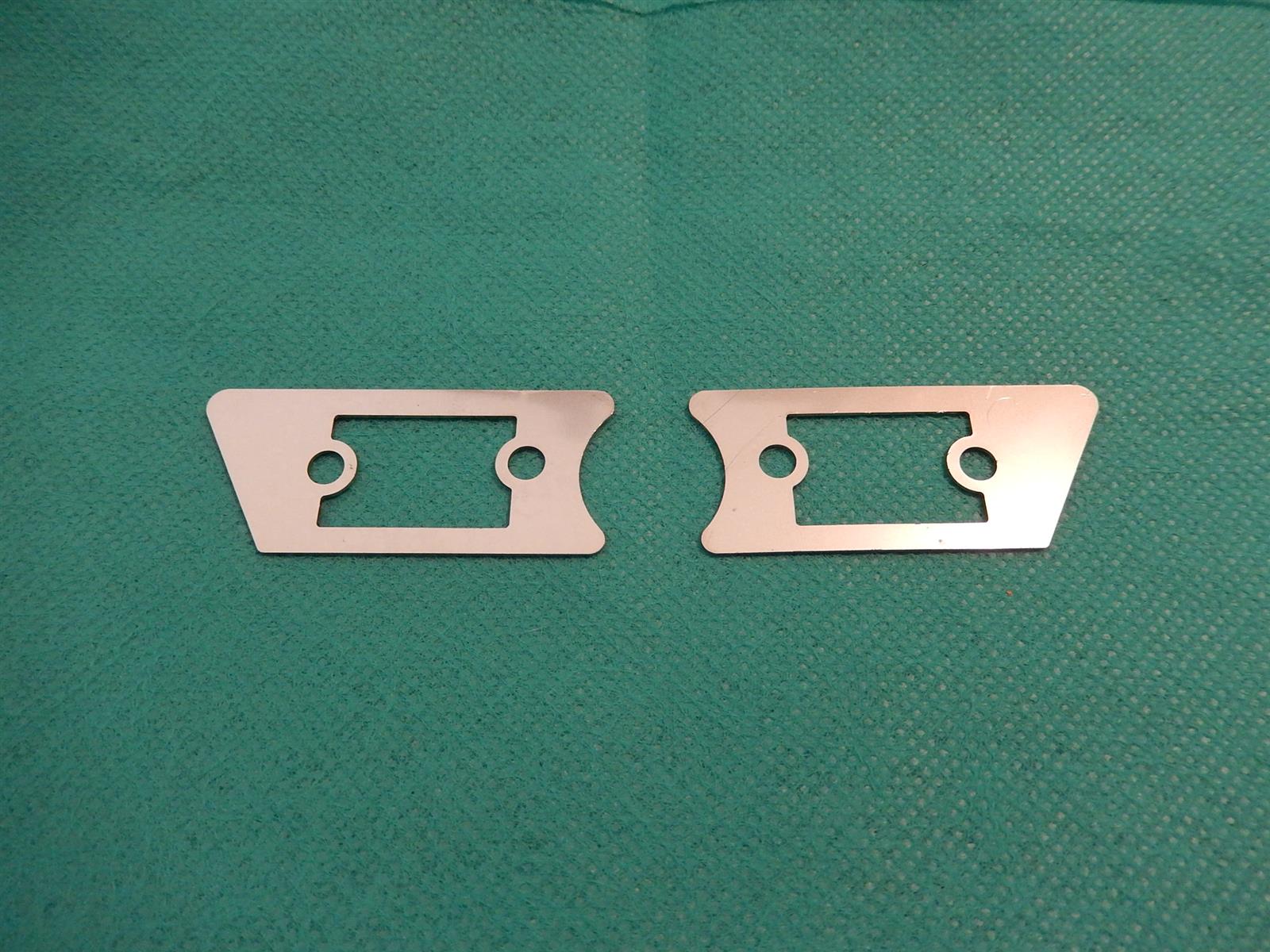

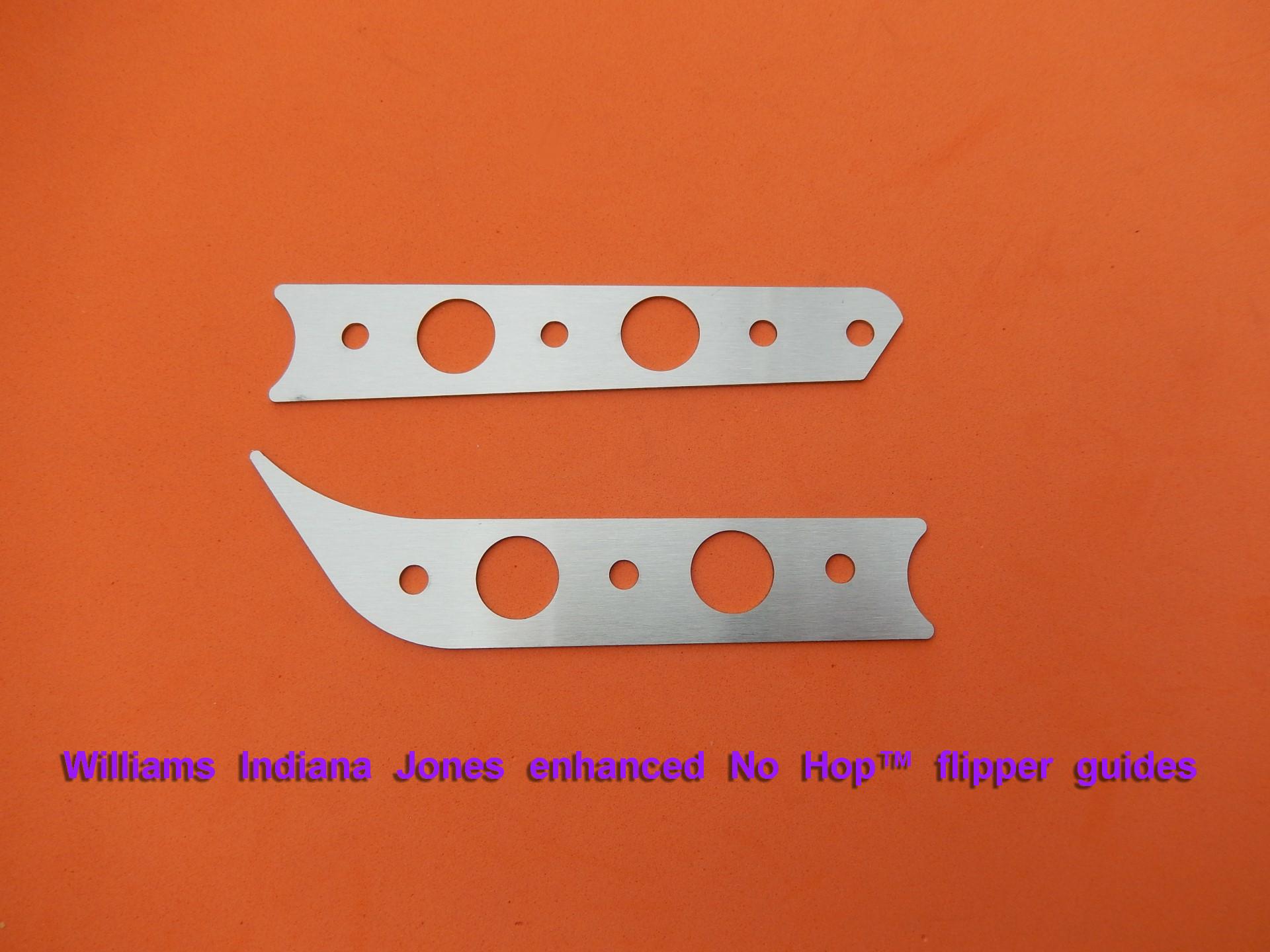

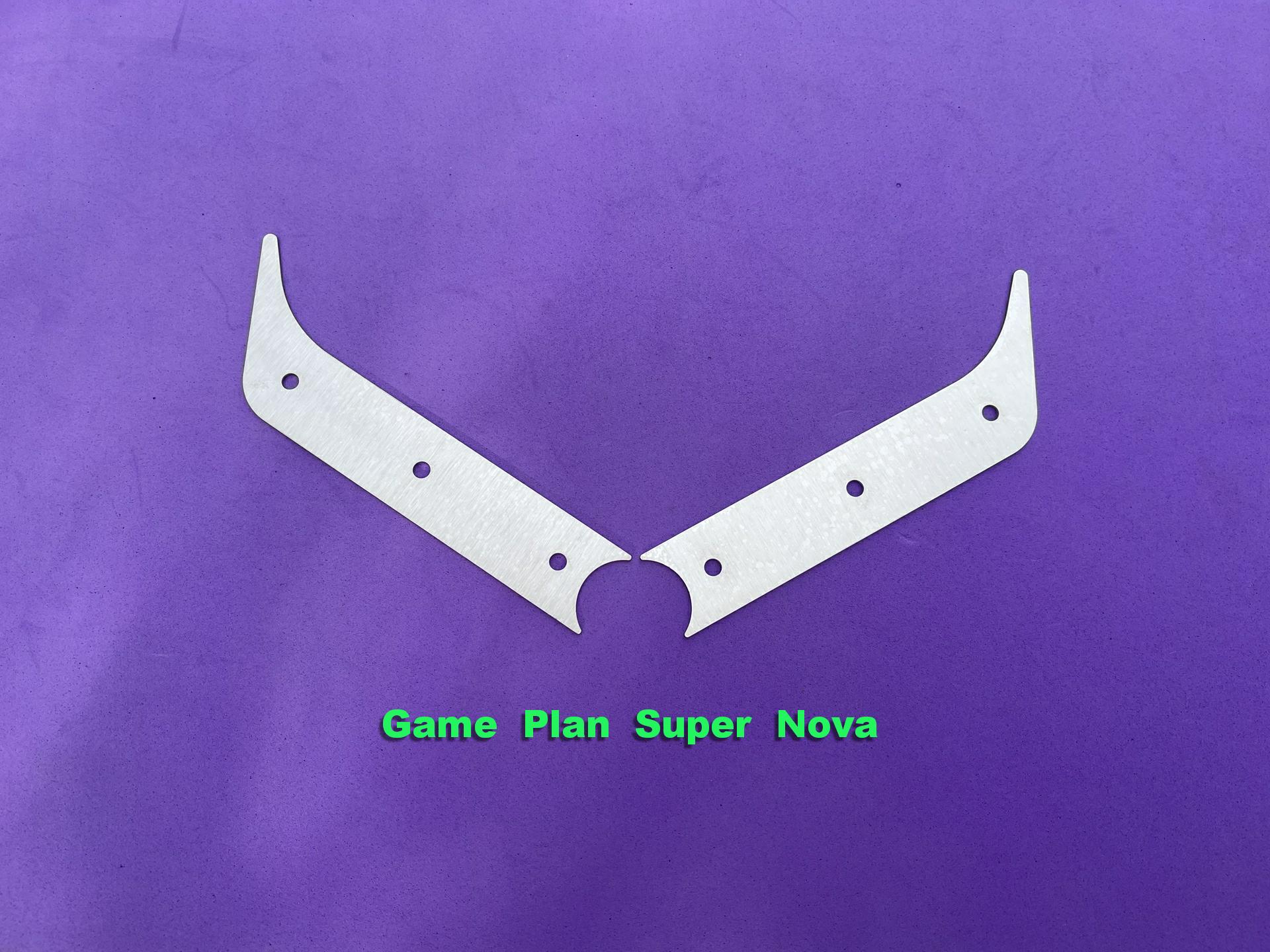

Pictures above show all variations I'm making. Check back often as more will be added. I'm making some game specific sets now too. In all cases check the part numbers against your games manual as the same types are used in many games across multiple generations.

Steve Turner created a nice guide showing how to install frames with attached bell spacers. Click HERE for his guide, thanks again Steve!

Get the ball rolling the way it was meant to be!  $10 each side, $20 a pair.

Email me HERE to order a set for your game! (will open your system default email program)
Shipping costs not included in prices. USPS First Class and Priority Mail shipping available
CA residents must add sales tax
